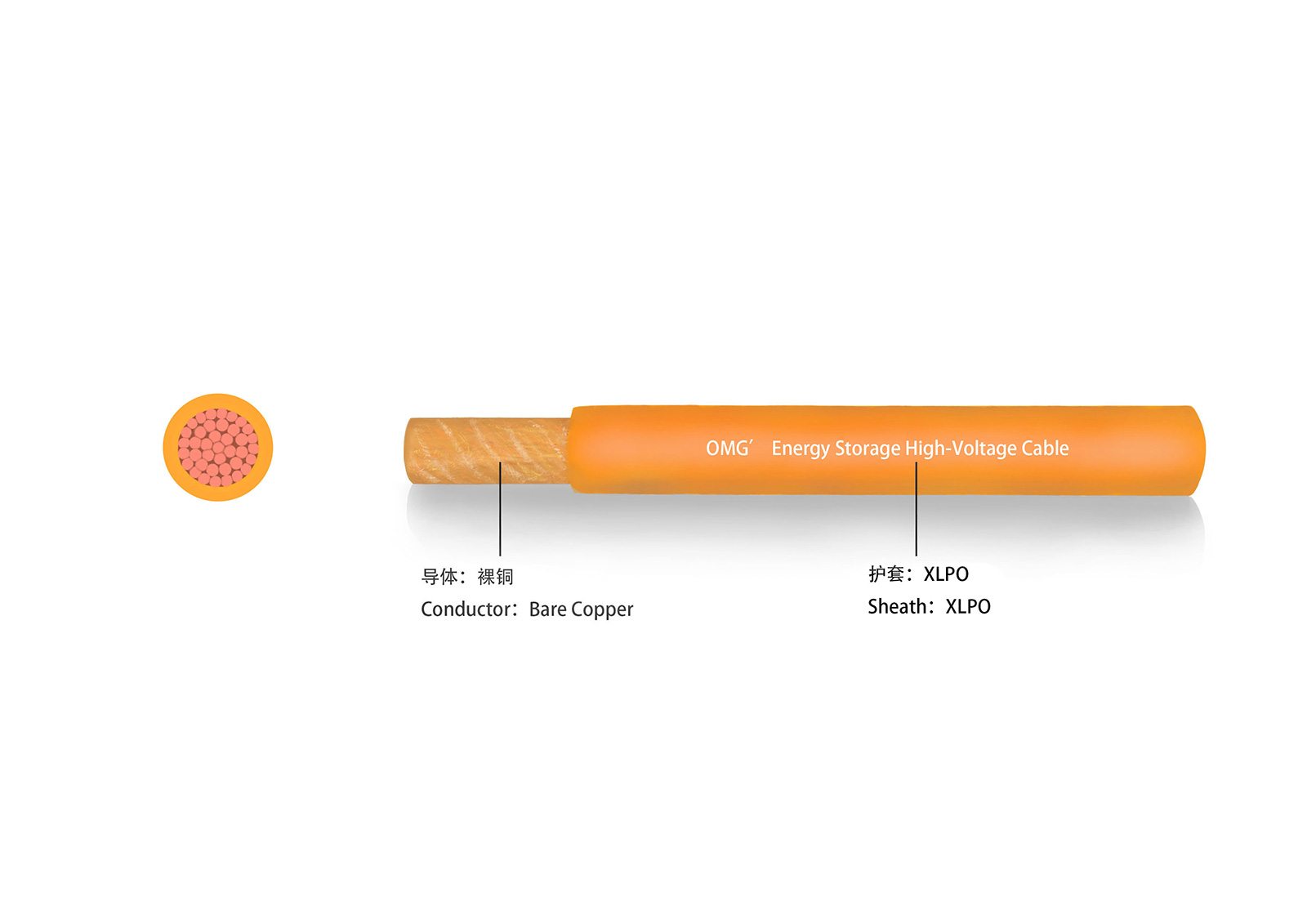

Energy storage high voltage cable

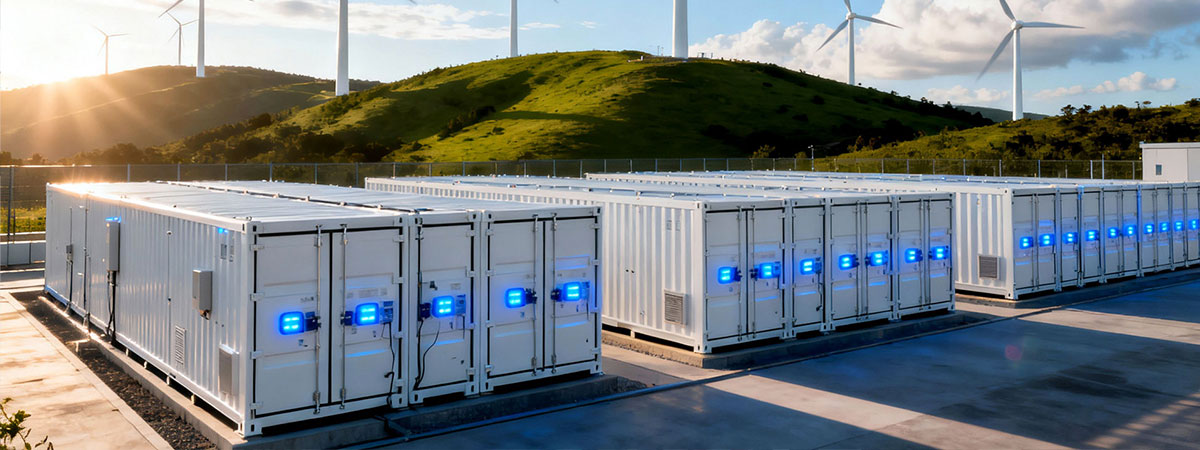

Application Scenarios
Advantages
• Full range of cables passes comprehensive performance testing per 2PfG 2693 standard.
• Resistant to extreme temperatures, oils, acids/alkalis, water, abrasion, and cracking.
• Excellent flame retardancy and conductivity with minimal temperature rise.
• Reduces procurement costs through proven technology and production lines.
• Certified with TUV Energy Storage and CE certifications.
• TUV conducts annual factory audits and on-site inspections at production facilities to ensure consistent product quality.
Standard
2PfG 2693
Certification
CE, TÜV certification
Certificate numbers:
CE (No. 3N250708.GOTTO13)
TÜV (R 50654882 0001)
General Specification
Contact OMG Cable Specialists for the latest cable specifications
Cable Characteristics
|
Rated temperature |
-40℃～+125℃ |
|
Rated Voltage |
DC 1000V；DC 1500V |
|
Short-term Aging |
158℃*168h，Comply with 2PfG 2693 |
|
Flame Test |
extinguish within 60S |
|
Min Bending Radius |
6*OD@OD﹤15mm；8*OD@OD≧15mm |
|
Cold Bend Test |
-40℃*4H |
|
Dielectric Voltage |
AC 4.5kV/5min；AC 6.8kV/5min |
|
Environmental Requirements |
Compliant with RoHS & REACH |
Specifications
|
DC 1500V single-core shielded energy storage cable (SD-16101 series) |
||||||||
|
Customer drawing number |
Conductor |
Insulation |
Sheath |
Remark |
||||
|
Size（mm²) |
Outer diameter OD mm |
Maximum resistance Ω/km |
Nominal thickness / minimum thickness (mm) |
Outer diameter OD mm |
Nominal thickness / minimum thickness (mm) |
Outer diameter OD mm |
Reference current A |
|
|
SD-16101-01 |
4 |
2.60Ref. |
4.71 |
0.80/0.64 |
4.20±0.25 |
1.00/0.80 |
6.80±0.30 |
43 |
|
SD-16101-02 |
6 |
3.20Ref. |
3.14 |
0.80/0.64 |
4.80±0.25 |
1.00/0.80 |
7.40±0.30 |
55 |
|
SD-16101-03 |
10 |
4.30Ref |
1.82 |
1.00/0.80 |
6.30±0.25 |
1.10/0.88 |
9.10±0.30 |
79 |
|
SD-16101-04 |
16 |
5.30Ref. |
1.16 |
1.10/0.88 |
7.50±0.30 |
1.10/0.88 |
10.30±0.40 |
105 |
|
SD-16101-05 |
25 |
6.70Ref. |
0.743 |
1.30/1.04 |
9.30±0.30 |
1.20/0.96 |
12.30±0.40 |
138 |
|
SD-16101-06 |
35 |
7.90Ref. |
0.527 |
1.30/1.04 |
10.50±0.50 |
1.30/1.04 |
13.70±0.40 |
169 |
|
SD-16101-07 |
50 |
9.50Ref. |
0.368 |
1.50/1.20 |
12.50±0.50 |
1.40/1.12 |
15.90±0.50 |
211 |
|
SD-16101-08 |
70 |
11.20Ref. |
0.259 |
1.50/1.20 |
14.20±0.50 |
1.40/1.12 |
17.60±0.50 |
269 |
|
SD-16101-09 |
95 |
13.10Ref |
0.196 |
1.50/1.20 |
16.10±0.60 |
1.50/1.20 |
19.70±0.50 |
328 |
|
DC 1000V single-core shielded energy storage cable (SD-16102 series) |
||||||||
|
Customer drawing number |
Conductor |
Insulation |
Sheath |
Remark |
||||
|
Size(mm²) |
Outer diameter OD mm |
Maximum resistance Ω/km |
Nominal thickness / minimum thickness (mm) |
Outer diameter OD mm |
Nominal thickness / minimum thickness (mm) |
Outer diameter OD mm |
Reference current A |
|
|
SD-16102-01 |
4 |
2.60Ref. |
4.71 |
0.70/0.56 |
4.00±0.25 |
1.00/0.80 |
6.60±0.30 |
43 |
|
SD-16102-02 |
6 |
3.20Ref. |
3.14 |
0.70/0.56 |
4.60±0.25 |
1.00/0.80 |
7.20±0.30 |
55 |
|
SD-16102-03 |
10 |
4.30Ref. |
1.82 |
0.70/0.56 |
5.70±0.25 |
1.10/0.88 |
8.50±0.30 |
79 |
|
SD-16102-04 |
16 |
5.30Ref. |
1.16 |
0.70/0.56 |
6.70±0.30 |
1.10/0.88 |
9.50±0.30 |
105 |
|
SD-16102-05 |
25 |
6.70Ref. |
0.743 |
0.90/0.72 |
8.50±0.30 |
1.20/0.96 |
11.50±0.40 |
138 |
|
SD-16102-06 |
35 |
7.90Ref. |
0.527 |
0.90/0.72 |
9.70±0.30 |
1.20/0.96 |
12.70±0.40 |
169 |
|
SD-16102-07 |
50 |
9.50Ref. |
0.368 |
1.00/0.80 |
11.50±0.50 |
1.30/1.04 |
14.70±0.40 |
211 |
|
SD-16102-08 |
70 |
11.20Ref. |
0.259 |
1.10/0.88 |
13.40±0.50 |
1.40/1.12 |
16.80±0.50 |
269 |
|
SD-16102-09 |
95 |
13.10Ref. |
0.196 |
1.10/0.88 |
15.30±0.60 |
1.50/1.20 |
18.90±0.50 |
328 |
|
DC 1500V single-core unshielded energy storage cable (SD-16103 series) |
||||||
|
Customer drawing number |
Conductor |
Insulation |
Remark |
|||
|
Size(mm²) |
Outer diameter OD mm |
Maximum resistance Ω/km |
Nominal thickness / minimum thickness (mm) |
Outer diameter OD mm |
Reference current A |
|
|
SD-16103-01 |
4 |
2.60Ref. |
4.71 |
0.80/0.64 |
4.20±0.25 |
43 |
|
SD-16103-02 |
6 |
3.20Ref. |
3.14 |
0.80/0.64 |
4.80±0.25 |
55 |
|
SD-16103-03 |
10 |
4.30Ref. |
1.82 |
1.00/0.80 |
6.30±0.25 |
79 |
|
SD-16103-04 |
16 |
5.30Ref. |
1.16 |
1.10/0.88 |
7.50±0.30 |
105 |
|
SD-16103-05 |
25 |
6.70Re. |
0.743 |
1.30/1.04 |
9.30±0.30 |
138 |
|
SD-16103-06 |
35 |
7.90Ref |
0.527 |
1.30/1.04 |
10.50±0.50 |
169 |
|
SD-16103-07 |
50 |
9.50Ref. |
0.368 |
1.50/1.20 |
12.50±0.50 |
211 |
|
SD-16103-08 |
70 |
11.20Ref. |
0.259 |
1.50/1.20 |
14.20±0.50 |
269 |
|
SD-16103-09 |
95 |
13.10Ref |
0.196 |
1.50/1.20 |
16.10±0.60 |
328 |
|
DC 1000V single-core unshielded energy storage cable (SD-16104 series) |
||||||
|
Customer drawing number |
Conductor |
Insulation |
Remark |
|||
|
Size(mm²) |
Outer diameter OD mm |
Maximum resistance Ω/km |
Nominal thickness / minimum thickness (mm) |
Outer diameter OD mm |
Reference current A |
|
|
SD-16104-01 |
4 |
2.60Ref. |
4.71 |
0.70/0.56 |
4.00±0.25 |
43 |
|
SD-16104-02 |
6 |
3.20Ref. |
3.14 |
0.70/0.56 |
4.60±0.25 |
55 |
|
SD-16104-03 |
10 |
4.30Ref. |
1.82 |
0.70/0.56 |
5.70±0.30 |
79 |
|
SD-16104-04 |
16 |
5.30Ref. |
1.16 |
0.70/0.56 |
6.70±0.30 |
105 |
|
SD-16104-05 |
25 |
6.70Ref. |
0.743 |
0.90/0.72 |
8.50±0.30 |
138 |
|
SD-16104-06 |
35 |
7.90Ref. |
0.527 |
0.90/0.72 |
9.70±0.30 |
169 |
|
SD-16104-07 |
50 |
9.50Ref. |
0.368 |
1.00/0.80 |
11.50±0.50 |
211 |
|
SD-16104-08 |
70 |
11.20Ref. |
0.259 |
1.10/0.88 |
13.40±0.50 |
269 |
|
SD-16104-09 |
95 |
13.10Ref. |
0.196 |
1.10/0.88 |
15.30±0.60 |
328 |
