Turkey is rapidly transforming into a core manufacturing and deployment hub for electric vehicles (EVs) bridging Europe and the Middle East. Driven by the rapid expansion of urban charging infrastructure and the accelerated electrification of commercial fleets, the demand for reliable power distribution components has reached unprecedented levels. At the heart of this transition lies a vital yet often overlooked challenge: maintaining thermal stability, electrical safety, and mechanical durability in high-voltage wiring harnesses and liquid-cooled fast-charging systems.

As a specialized manufacturer of EV charging cables, automotive high-voltage (HV) cables, and Battery Energy Storage System (BESS) cables, Guangdong Omg Transmission Technology Co., Ltd. (OMG’) delivers robust cable quality. OMG’ fully empowers Turkey to meet harsh climate variations, fast-charging grid upgrades, and stringent OEM manufacturing standards.



1. Environmental Constraints and Operational Challenges in Turkey’s EV Market

Turkey’s unique geographic positioning creates demanding operating environments for electric mobility hardware. Operating conditions range from sub-zero freezing temperatures in Eastern Anatolia to high thermal stress during hot summers in coastal Mediterranean areas and urban centers like Istanbul.

Furthermore, the rapid deployment of High-Power DC Fast Charging (HPDC) infrastructure—operating between 150 kW and 360 kW—exerts severe electrical and mechanical stresses on charging cables and internal vehicle harnesses.



Key Technical Requirements for Cables in the Turkish Market:



• Flexibility & Mechanical Strain Resistance:High cyclic bending performance to withstand frequent daily commercial and public charging use without conductor fatigue or fracturing.
• Environmental & Chemical Resistance:Full protection against UV radiation, ozone aging, road de-icing salts, and automotive fluids such as coolants and lubricants.
• Wide Operating Temperature Range:Continuous operating stability within -40°C to +125°C (up to +150°C for internal powertrain harnesses).
• Electromagnetic Compatibility (EMC):Multi-layer shielding designs preventing signal interference with sensitive Electronic Control Units (ECUs) and CAN bus lines in modern EVs.



2. Technical Parameter Matrix: OMG’ Cable Engineering Specifications

To comply with international automotive standards and regional operational demands, charging cables and high-voltage cables produced by OMG’ strictly adhere to European (EN/IEC) and international (ISO/UL) standards.

Specification Parameter	EV Charging Cables DOCX	EV High-Voltage Cables DOCX	Energy Storage (BESS) Cables DOCX
Applicable Standards	IEC 62893 / UL 2263 / GB/T 33594	ISO 19642 / LV 216 / QC/T 1037	2PfG 2693
Rated Voltage	AC 450/750V, DC 1000V/1500V	AC 600V/DC 900V; AC 1000V/DC 1500V	DC 1000V / 1500V
Temperature Range	-40°C to +90°C / +105°C	-40°C to +(125°C / 150°C)	-40°C to +125°C
Conductor Material	Highly flexible Bare / Tinned Copper	Bare / Tinned Copper / Aluminum Alloy	Bare / Tinned Copper
Insulation Material	TPE / TPU	XLPE / XLPO	XLPO
Flame Retardancy	FT1	VW-1	VW-1

(External Reference Suggestion: For detailed regulatory standards on automotive cable testing, refer to technical standards published by ISO – International Organization for Standardization and IEC – International Electrotechnical Commission.)

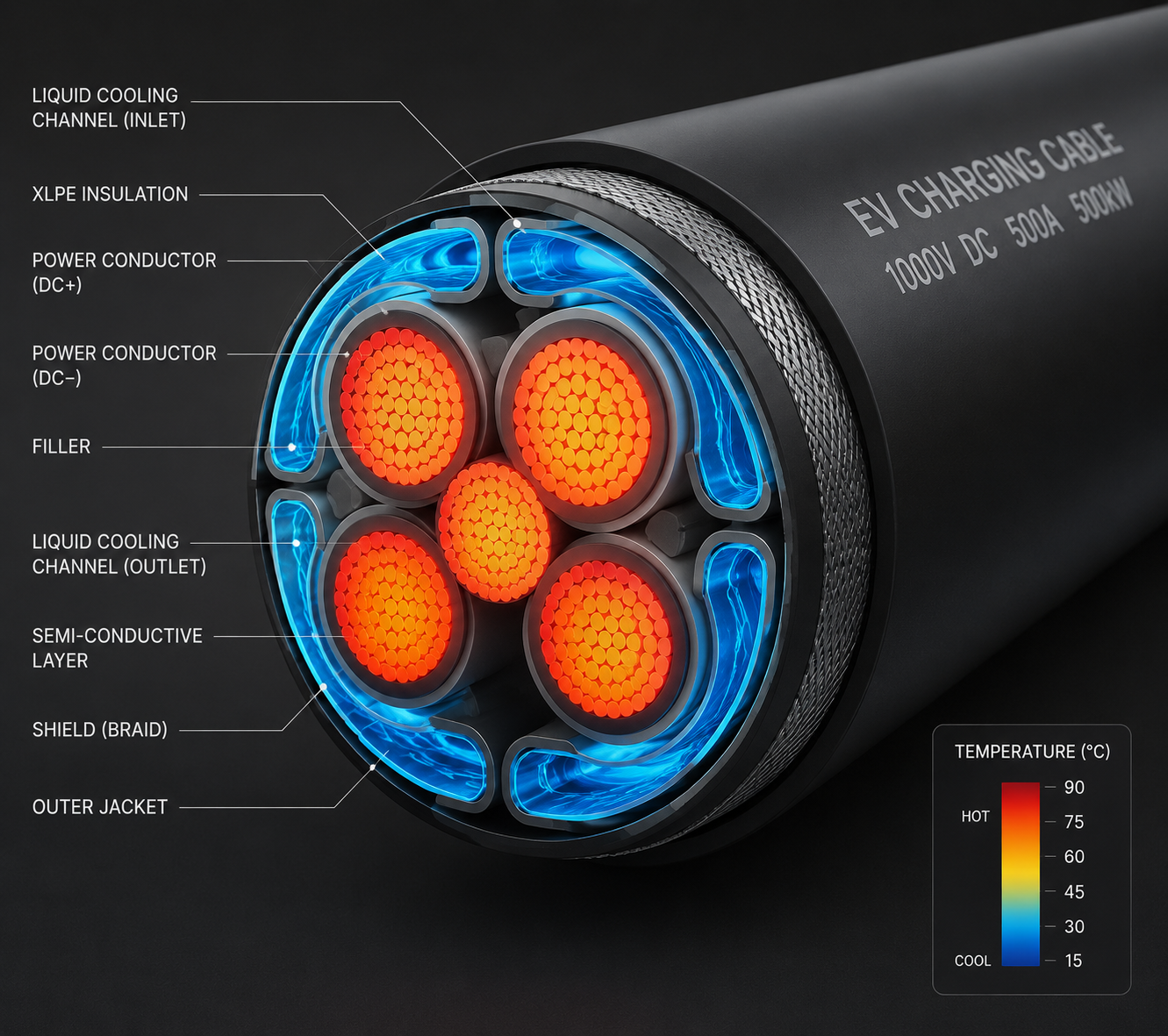

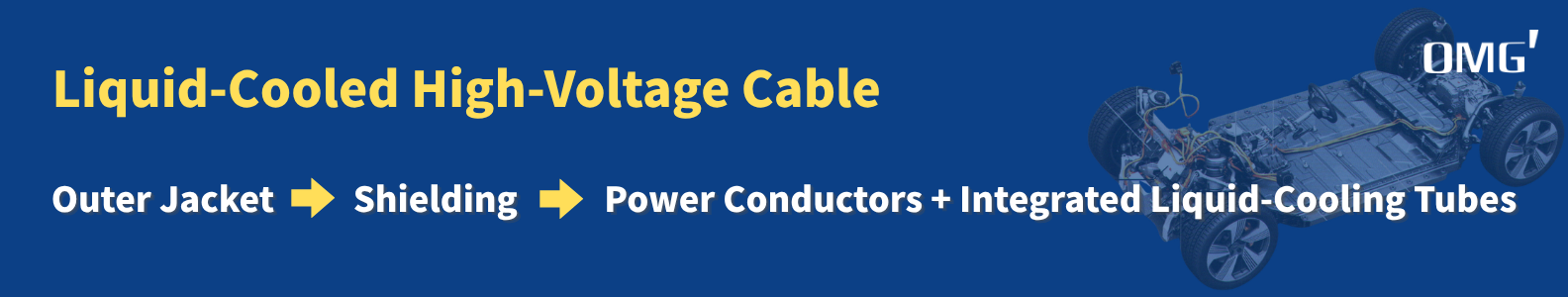

3. OMG’ Liquid-Cooled Charging Cables: Solving Weight and Thermal Bottlenecks

As Turkish charging point operators (CPOs) build out ultra-fast charging networks along highway corridors connecting Ankara, Istanbul, and Izmir, thermal management has become a critical bottleneck. Standard cable constructions transmitting over 250A continuous current become excessively heavy, rigid, and difficult for end-users to handle.





Advantages of OMG’ Liquid-Cooled Solutions:

• Lightweight & High Ampacity:Reduces overall cable outer diameter (OD) by 30% and weight by up to 50% compared to conventional designs, while safely delivering continuous currents up to 1000A with minimal temperature rise.

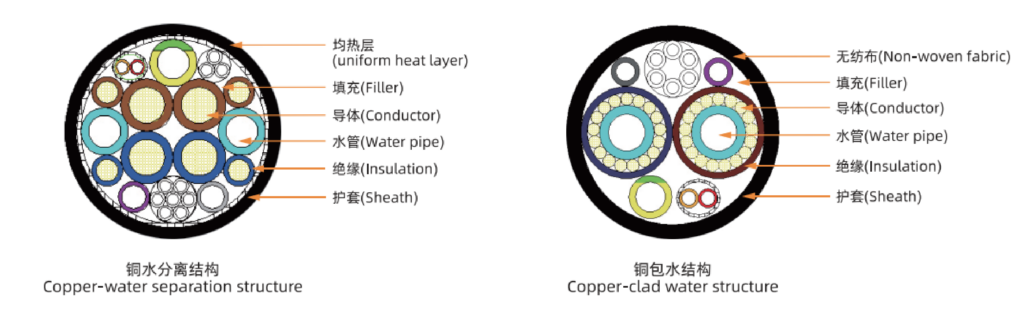

• Dual Cooling Architecture:Offers tailored options, including oil-cooled and water-cooled (copper-water separation and copper-clad water) structures to optimize thermal dissipation based on CPO dispenser designs.
• Optimized TPU Sheathing:Premium Thermoplastic Polyurethane (TPU) outer jackets ensure flex life at sub-zero temperatures while resisting abrasion, tears, and environmental degradation on public charging asphalt.
• Comprehensive Certifications:Certified under UL, TÜV, and CQC standards, fully compliant with RoHS and REACH regulations to support high-power ultra-fast charging deployments globally.
  •

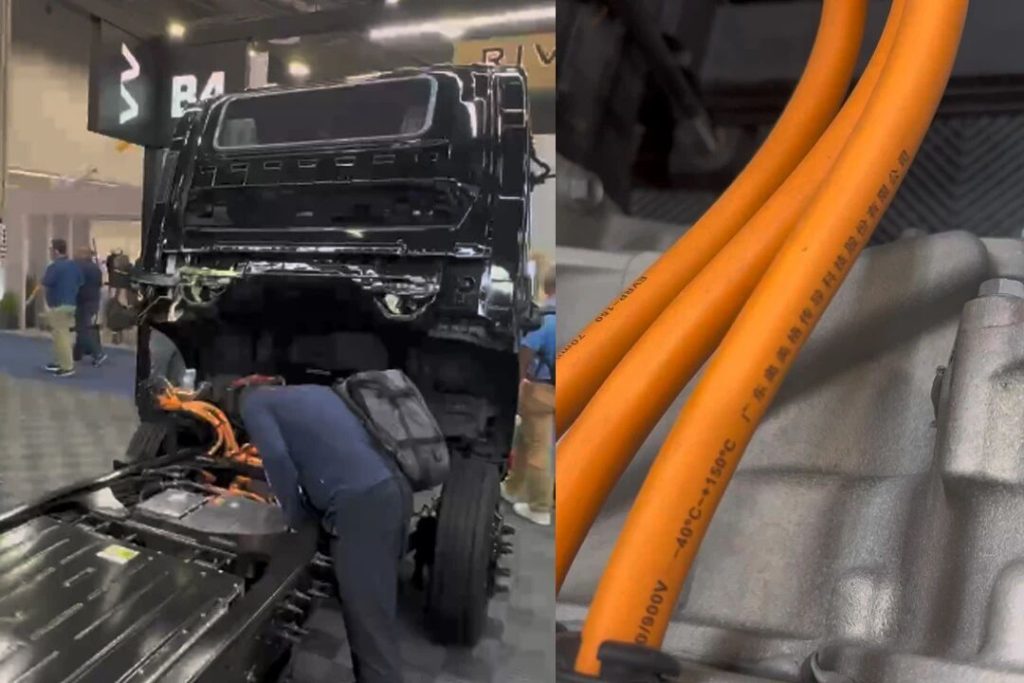

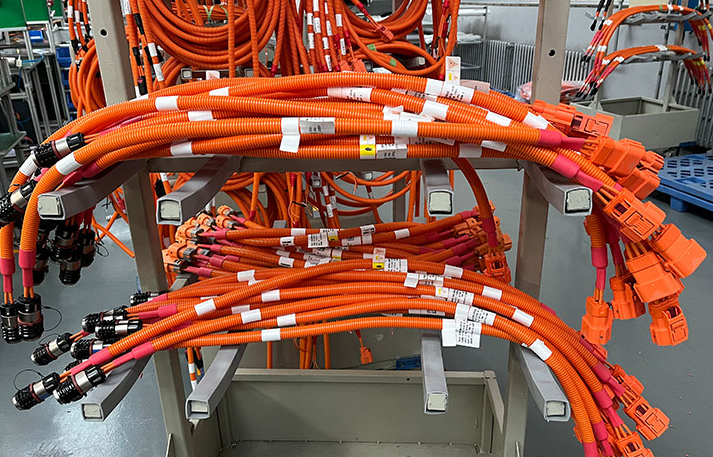

4. Vehicle High-Voltage Harnesses & Energy Storage Systems (BESS) Integration

Turkey’s expanding manufacturing capacity in electric buses, commercial delivery trucks, and passenger vehicles requires uncompromising reliability from high-voltage wire harnesses. OMG’ orange high-voltage cables are engineered for seamless integration with automotive-grade connector systems (compliant with TE Connectivity, Amphenol, and similar OEM standards).



Critical Application Scenarios for OMG’ High-Voltage Technology:

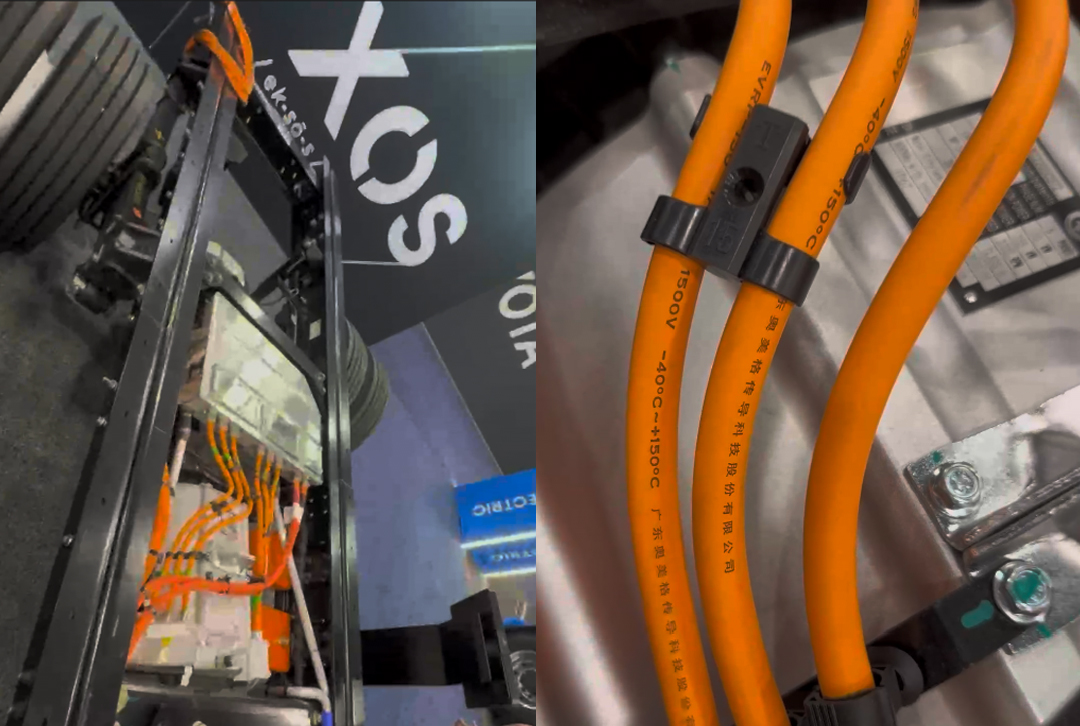

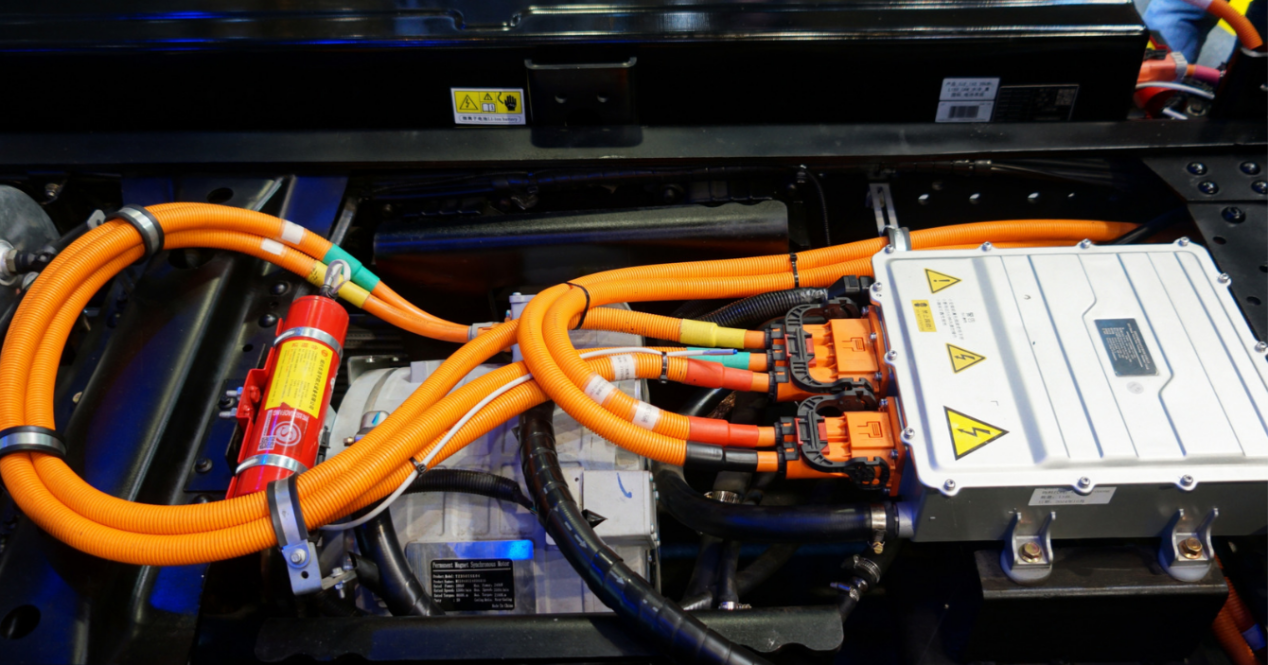

• Inverter-to-Motor Connections:Highly flexible HV cables built to endure extreme mechanical vibrations, high-frequency thermal cycling, and continuous current surges.
• Battery Management & Module Interconnects:Ultra-flexible single-core and multi-core conductors suited for tight bend radii inside EV battery packs and stationary BESS containerized enclosures.
• Grid-Scale Storage Integration:CE and TÜV certified high-voltage cables connecting renewable energy setups to local fast-charging hubs, helping stabilize Turkey’s regional power grids.



Supporting Local Supply Chains with Global Quality Standards

To keep pace with Turkey’s ambitious e-mobility roadmaps, Tier-1 harness manufacturers and OEMs require cable suppliers with consistent material quality, international compliance certifications, and responsive supply chains. OMG’ delivers complete high-voltage and charging cable solutions tailored to meet these strict technical parameters.

The global Electric Vehicle (EV) market and its supporting infrastructure are expanding at a rapid pace, putting unprecedented strain on the supply chain. Wiring harness engineers, connector engineers, and procurement managers face a critical challenge: meeting aggressive project timelines while ensuring high-voltage cables and EV charging cables strictly comply with rigorous, unified global automotive safety standards.



While Chinese cable manufacturers offer distinct capacity and cost advantages, mitigating supply chain risks and ensuring consistent component quality remain top priorities for international buyers. This article examines OMG, a professional EV cable manufacturer, to analyze how its standardized engineering and vertically integrated manufacturing guarantee product reliability, shorten lead times, and minimize supply chain risks for global OEMs and charging station manufacturers.



1. The Foundation of Trust: Engineering Aligned with Global EV Standards

In-vehicle high-voltage cables and charging station cables operate under harsh conditions, including prolonged exposure to elevated temperatures, electrical loads, and continuous bending or pulling. Any failure in insulation or jacketing can lead to catastrophic safety issues such as current leakage or short circuits. OMG’s full product portfolio complies with major international certification standards, eliminating the safety and operational risks associated with non-standard, low-cost alternatives.



Global Authoritative Certifications

To meet the strict market entry requirements of major North American and European OEMs and charging infrastructure developers, OMG cables have successfully completed full-testing suites in globally recognized, independent third-party laboratories. This includes core certifications such as UL and TÜV.



Automotive Quality Management System (IATF 16949)

All production facilities dedicated to in-vehicle high-voltage cables strictly implement the IATF 16949 automotive quality management system. This rigorous framework ensures proactive defect prevention and continuous manufacturing process optimization. By minimizing batch-to-batch performance fluctuations, OMG meets the stringent quality and reliability demands of automotive supply chains.



Charging Infrastructure Compliance

OMG’s EV charging cables not only meet but exceed the specifications of IEC 62893 (European standard for charging cables) and UL 2263 (North American standard for EV charging cables). By engineering products that simultaneously satisfy both major regional standards, OMG guarantees safe and stable power transmission for fast-charging equipment across diverse environmental and climatic conditions.



2. Advanced Material Science and Engineering

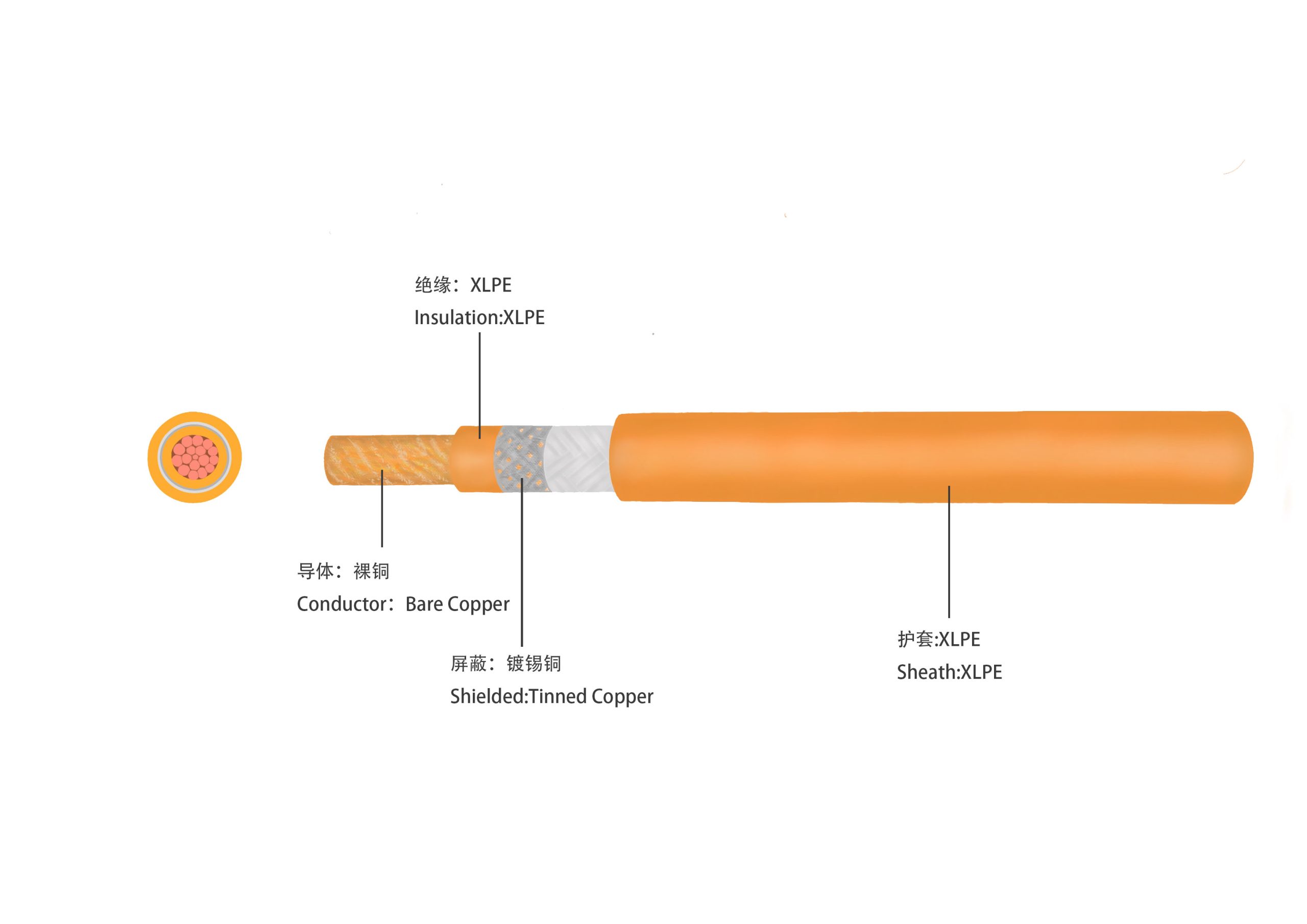

In-Vehicle High-Voltage Cables

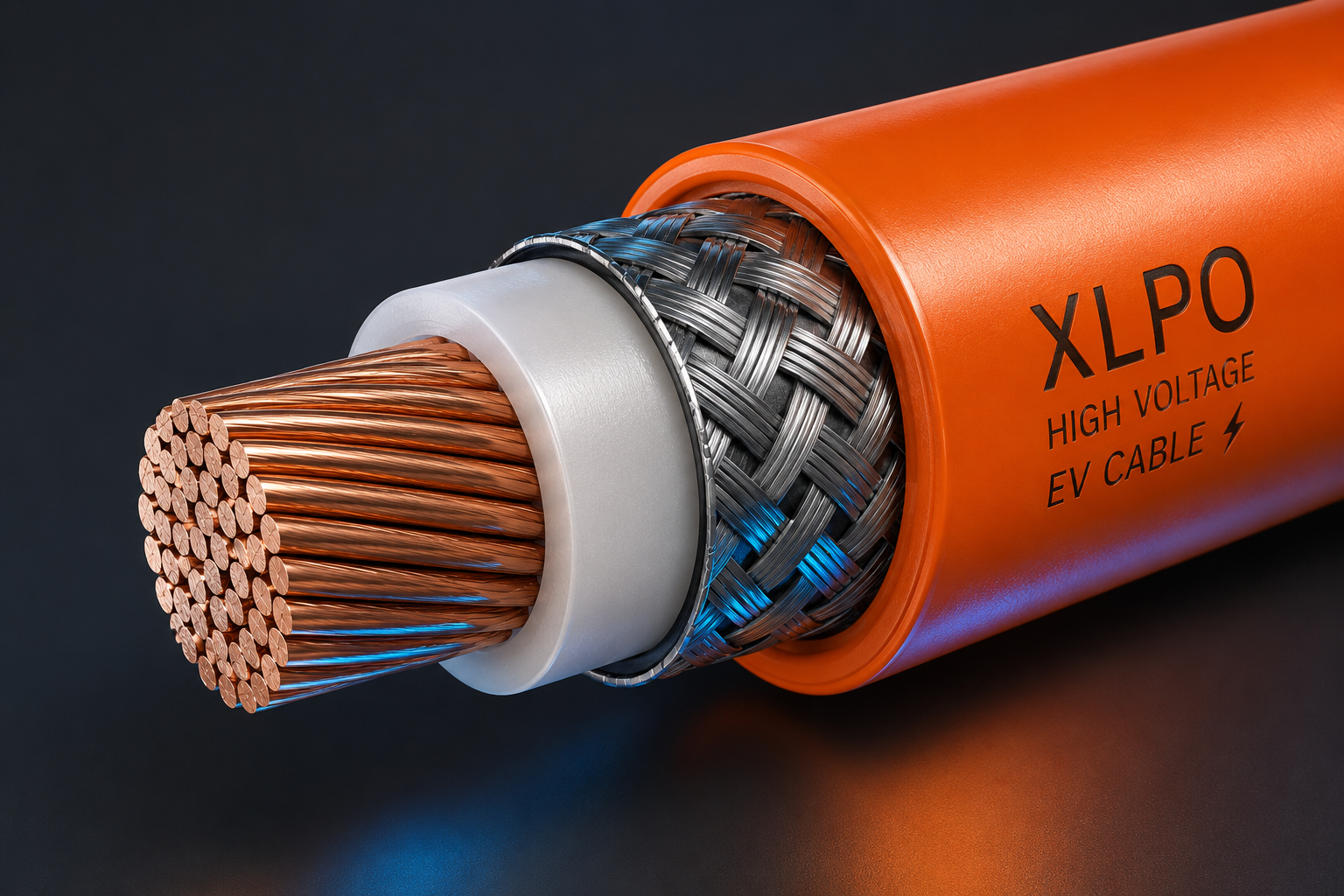

OMG utilizes cross-linked polyolefin (XLPO) insulation modified via electron beam irradiation. This advanced material provides long-term thermal stability with a maximum continuous operating temperature of up to 150°C, alongside excellent resistance to abrasion and thermal aging. Combined with multi-strand, high-purity copper conductors, these cables exhibit exceptional flexibility. This allows for a significantly smaller minimum bend radius, making them highly adaptable to the tight, restricted routing spaces within electric vehicle chassis.

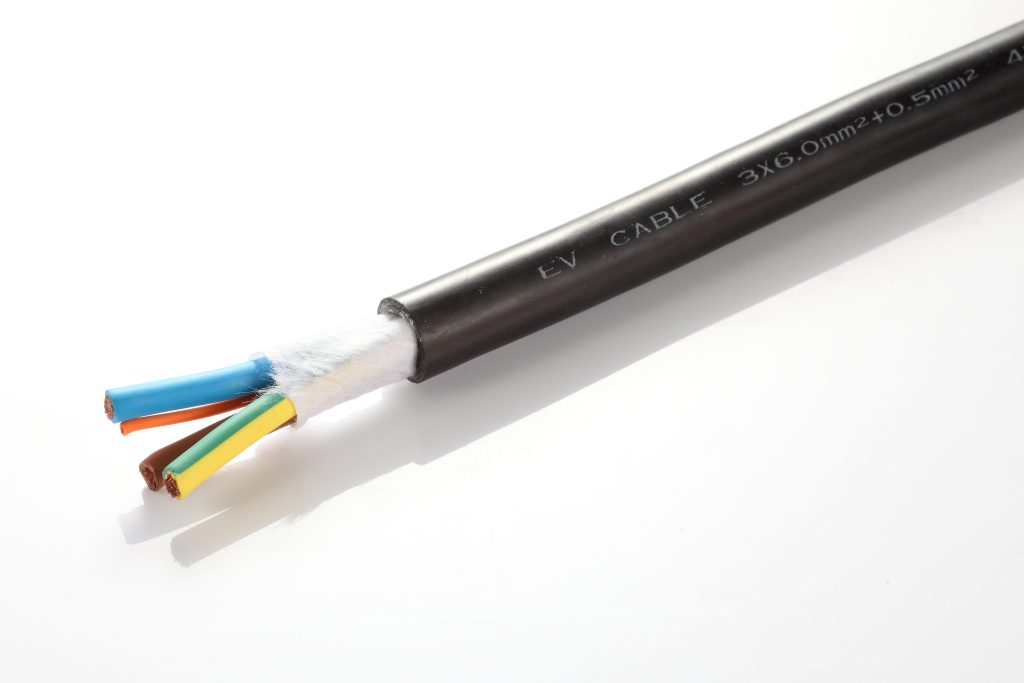

EV Charging Station Cables

The outer jackets of OMG charging cables are formulated from high-performance TPE/TPU materials. These compounds deliver excellent UV resistance, wide temperature tolerance, and robust resistance to mineral oils, acids, alkalis, water, and environmental stress cracking. Even in extreme environments as low as -40°C, the cables maintain superb bending flexibility, ensuring long-term durability against mechanical dragging and heavy vehicle run-overs without cracking or degrading.

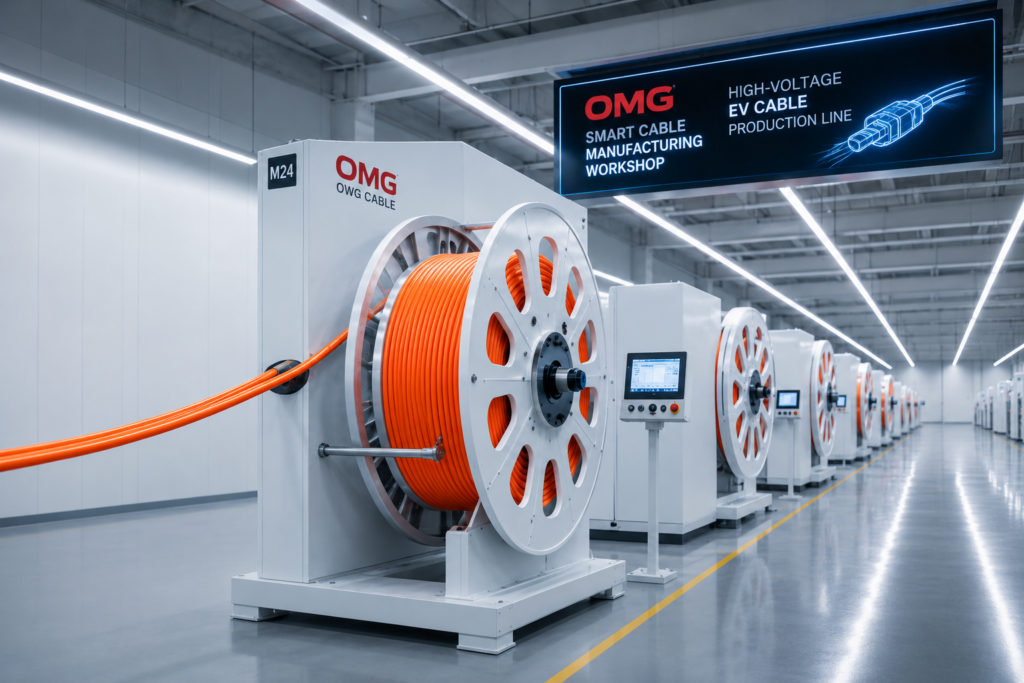

3. Accelerating Lead Times: Process Optimization and Lean Manufacturing

Meeting stringent technical specifications is merely the baseline for market competitiveness; stable, on-time delivery is equally critical for global procurement teams. Leveraging a mature, localized cable industrial ecosystem and highly automated lean production lines, OMG substantially compresses production cycles.



[ Raw Materials Quality Control ] ──► [ Automated Stranding & Extrusion ] ──► [ Integrated MES System Monitoring ] ──► [ 100% In-House In-Line Inspection ]

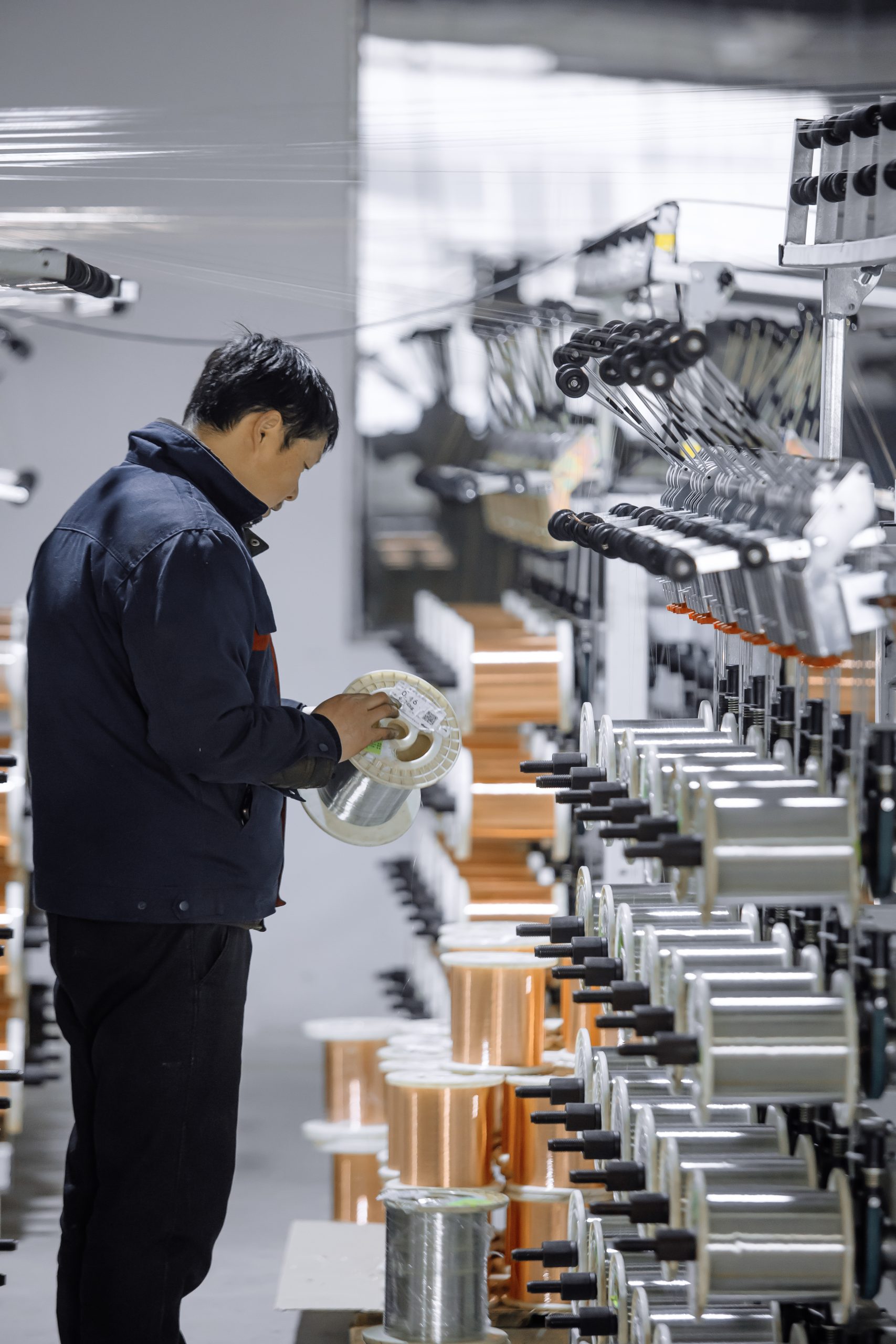

Vertically Integrated Manufacturing + Smart MES Ecosystem

Small-to-medium cable factories often struggle with fragmented supply chains and inadequate machinery, resulting in unpredictable lead times and unstable capacity. OMG addresses this through a vertically integrated intelligent manufacturing model.



By maintaining strict control over raw materials, deploying fully automated stranding and extrusion equipment, and utilizing a Manufacturing Execution System (MES) for real-time digital management, OMG eliminates outsourcing dependencies and bottlenecks. This complete end-to-end control allows for rapid prototyping of custom designs and agile scaling of high-volume batches. Consequently, OMG’s standard delivery times significantly outperform industry averages, ensuring uninterrupted production for OEMs and charging infrastructure assembly lines.



4. Technical Benchmark: OMG EV Cables vs. Industry Standards

To assist wiring harness engineers and procurement managers in component selection, the following tables compare OMG EV cable performance metrics against standard commercial-grade compliance benchmarks.



In-Vehicle High-Voltage Cables

Technical Parameter	Standard Compliant Cable Benchmark	OMG EV High-Voltage Cable	Application Advantage
Rated DC Voltage	DC 1000V	DC 1500V	Provides ample voltage margin, fully compatible with next-generation 800V high-voltage EV architectures.
Long-Term Thermal Stability	-40°C ~ +125°C	-40°C ~ +125°C / +150°C	Effectively retards insulation degradation under fast-charging peak temperature spikes.
Shielding Effectiveness	Standard Al-foil + tinned copper braid (85% coverage)	High-density tinned copper braid (≥90% coverage)	High-efficiency suppression of EMI/RFI, safeguarding sensitive on-board electronic control units (ECUs).
Standard Custom Lead Time	6 – 8 Weeks	2 – 3 Weeks	Accelerates time-to-market for new vehicle programs and ensures a stable high-volume production cadence.



EV Charging Station Cables

Technical Parameter	Standard Compliant Cable Benchmark	OMG EV Charging Cable	Application Advantage
Continuous Operating Temp	IEC: -40°C~+90°C;   UL: -40°C~+105°C	-40°C ~ +105°C	Prevents jacket softening under high-temperature DC fast charging; remains flexible in arctic conditions.
Dynamic Bending Radius	≥ 6 × Cable Outer Diameter (OD)	≥ 4 × Cable Outer Diameter (Applies to reduced-OD variants)	Improves ergonomics during handling; perfectly suited for compact wall-mounted charging enclosures.
Jacket Compound	Standard commercial-grade TPE	High-performance TPE/TPU	Superior resistance to UV, ozone, oil, and abrasion; withstands vehicle drive-overs and extended outdoor weathering.
Standard Custom Lead Time	6 – 8 Weeks	2 – 3 Weeks	Shorter product rollout cycles for charging infrastructure OEMs, stabilizing manufacturing forecasts.



(Note: For comprehensive material data sheets, engineers are encouraged to reference standards via authoritative bodies such as the IEC Official Website or UL Standards sales portals.)



Conclusion: De-risking Global Supply Chains

Sourcing EV high-voltage cables and charging infrastructure components from China does not mean compromising on safety, operational lifespan, or end-user experience. By anchoring its operations in the IATF 16949 framework, continuously innovating in polymer material science, and utilizing a vertically integrated smart manufacturing model, OMG delivers products that consistently align with top-tier international quality benchmarks.

For global procurement teams and engineering professionals, partnering with a cable manufacturer that combines proprietary material R&D, a robust international certification portfolio, and rapid supply chain execution is a core strategic move to maintain a competitive edge in the fast-paced e-mobility sector.

The transition to 800V high-voltage architectures in the new energy vehicle (NEV) industry has pushed vehicle electrical systems to their physical limits. Automotive engineers now face smaller packaging spaces, higher current densities, and extremely demanding thermal management requirements.



Given these constraints, wiring harness engineers and procurement decision-makers face a critical dilemma: Should you rely on off-the-shelf “standard cables,” or invest upfront in a “customized cable solution”?



As a leading specialist in EV high-voltage cables and charging cables, OMG’ breaks down the technical and economic boundaries of both approaches to help you optimize your next platform.



1. Standard Cables: The Balance Between Efficiency and Cost

Standard cables refer to mature, off-the-shelf products that fully comply with mainstream industry standards, such as ISO (International Organization for Standardization), LV (German OEM standards), or GB/T (Chinese National Standards).

When to Choose Standard Cables:

• Rapid Prototype Verification:During the initial phases of EV Research & Development (R&D), the plug-and-play availability of standard cables significantly compresses the development cycle. This allows engineering teams to focus their efforts on validating core components like electric motors and power electronics (inverters).
• Non-Space-Constrained Zones:If the vehicle’s routing path has generous spatial clearance and is free from extreme thermal or mechanical stressors, standard cables offer an exceptional price-to-performance ratio that minimizes Bill of Materials (BOM) costs.
• Lead-Time and Budget-Driven Projects:Standard parts are typically stocked and readily available. This rapid supply chain turnaround is ideal for tight-budget, mature platform designs with conservative technical requirements.



OMG Technical Advisory: When sourcing standard cables, always verify that the supplier provides comprehensive automotive-grade certifications (such as validation reports conforming to LV 216 or ISO 19642). Skipping this verification risks quality fluctuations that could trigger costly field recalls.



2. Customized Solutions: Pursuing Peak Performance

As cell-to-chassis (CTC) integration and vehicle lightweighting become the industry standard, high-voltage cables are increasingly forced into extremely tight geometries. In many cases, they must handle both high-current power transmission and liquid-cooling pathways simultaneously. Under these conditions, customization is no longer optional—it is a necessity.

When to Choose Customized Cables:

• Extreme Spatial Limitations:When the minimum bending radius of a standard cable cannot navigate tight routing paths, OMG customizes the conductor geometry (e.g., using ultra-fine stranded copper) and reformulates the insulation material. This achieves a significantly smaller outer diameter (OD) and tighter bending radius without sacrificing electrical insulation or mechanical strength.
• Severe Environmental Hazards:Cables routed near the battery pack or underbody are exposed to battery electrolyte corrosion, sustained high temperatures, and intense electromagnetic interference (EMI). Customized sheath materials (such as specialized cross-linked elastomers or fluoropolymers) and optimized shielding braids ensure long-term durability and electromagnetic compatibility (EMC).
• Aggressive Lightweighting Targets:Custom development allows engineers to tailor the conductor cross-sectional area precisely to the actual duty cycle and current load of the vehicle. By eliminating redundant copper mass, custom cables contribute significantly to reducing the overall curb weight of the vehicle.



3. OMG Cables: Empowering Your Project Decisions

At OMG, we do not just manufacture cables; we engineer your electrical connectivity solutions. Here is how we add value to your design cycle:

Simulation-Driven Development

Before cutting any physical tooling or starting production runs, we conduct finite element analysis (FEA) for bending stress and thermal-fluid simulations. This identifies and mitigates mechanical wear and heat dissipation bottlenecks early in the design stage.

Full-Lifecycle Engineering Support

From initial concept definition and rapid prototyping to mass production and PPAP approval, OMG’s dedicated engineering team collaborates closely with your R&D department to ensure the cable assembly integrates seamlessly into your vehicle’s architecture.

Rigorous Quality Standards

Our manufacturing facilities and processes strictly adhere to IATF 16949 and ISO 9001 quality management systems, providing robust quality assurance that protects your brand’s reputation.



Decision Matrix: Standard vs. Custom Cable Solutions

Evaluation Metric	Standard Cables	Customized Solutions
Lead Time / Cycle	Rapid turnaround (Off-the-shelf)	Deep collaborative development (Structured timeline)
Adaptability	Generalized, broad compatibility	Tailored precisely to specific application constraints
Performance	Meets standard industry benchmarks	Optimized for extreme thermal, mechanical, & EMI conditions
Cost Profile	Lower initial unit cost	Higher initial development cost, but superior TCO (Total Cost of Ownership) in complex applications



Conclusion

Selecting the right cable is about more than matching numbers on a datasheet—it is about securing a reliable, long-term electrical connection for your vehicle platform. If you are currently in the platform definition stage, or facing routing bottlenecks such as high bending stress, poor heat dissipation, or tight spatial envelopes, OMG is here to help.

We offer a comprehensive, one-stop service from standard product selection to custom R&D, making your EV electrical system safer, lighter, and more efficient.

Contact our engineering team today to receive a professional design evaluation for your next project.

The automotive wiring harness is widely recognized as the “neurological system” of modern New Energy Vehicles (NEVs). As global electrification accelerates, wiring harness engineers and procurement specialists face a crucial selection dilemma: Why are industry standard organizations mandating a comprehensive shift toward Low Smoke Zero Halogen (LSZH) materials, while accelerating the retirement of legacy PVC cables?

Understanding the technical logic behind this material evolution requires analyzing the unique operational environment of high-voltage (HV) electric vehicles and the demanding compliance thresholds required for battery-adjacent components.



1. Why Is the In-Vehicle Environment So Demanding for High-Voltage Cables?

An electric vehicle is not merely a transport medium; it is a highly integrated, enclosed space. High-voltage cables are densely routed inside engine compartments, operating adjacent to battery packs, HV connectors, and sensitive micro-sensing circuits.



Low Tolerances for Thermal Faults

When traditional halogenated (such as PVC) cables experience short circuits or electrical overloads, their primary threat is not merely flammability, but the chemistry of their combustion byproducts.



Preventing Secondary Disasters

In thermal runaway or localized electrical fire events, standard PVC insulation releases high concentrations of dense black smoke alongside toxic, corrosive halogenated gases. Dense smoke severely impedes passenger evacuation and emergency response vision. Simultaneously, acidic gases attack circuit boards and ECU sensors, escalating localized electrical faults into vehicle-wide systems failures.



2. Material Performance Comparison: LSZH vs. Halogenated PVC

LSZH insulation compounds offer distinct technical and chemical advantages in high-voltage EV applications. The table below outlines key engineering metrics and their operational impact on vehicle systems:

Performance Metric	Traditional Halogenated Cable (e.g., PVC)	LSZH Flame-Retardant Cable	Impact on EV Systems & Safety
Smoke Emission Rate	High; generates dense black smoke	Extremely Low; high light transmittance	Preserves visibility during emergency evacuation and rescue operations.
Toxicity & Corrosivity	Releases acidic/toxic halogen gases (HCl)	Zero halogen, non-toxic, non-corrosive	Prevents chemical degradation of ECU boards and onboard electronics.
Flame Retardancy Rating	Moderate to Low	Superior (Meets UL VW-1 / ISO specs)	Prevents flame propagation along cable paths to the battery pack.
Temperature Tolerance	Typically limited (-20°C to +105°C)	Broad range (-40°C to +150°C)	Withstands continuous thermal dissipation from high-amp charging cycles.



3. OEM Selection Criteria: Why the VW-1 Flame Test Is Non-Negotiable

When auditing bill-of-materials (BOM) specs for high-voltage cables, the VW-1 (Vertical Flame Test) serves as a non-negotiable benchmark for insulation integrity.



[ Flame Test Specification Benchmark ]

Cable Suspended Vertically ➔ Sustained Direct Flame Ignition ➔ Criteria: Rapid Self-Extinguishing / Zero Dripping Ignition



The VW-1 protocol subjects the cable to extreme conditions: a vertically suspended specimen is exposed to direct, sustained flame burn cycles. To pass, the insulation layer must demonstrate:

• Rapid self-extinguishing capabilitiesimmediately upon flame removal.
• Zero sustained vertical flaming.
• No flaming drips/particlescapable of igniting underlying cotton indicators.



Advanced solutions, such as OMG EV high-voltage cables, achieve compliance with stringent VW-1 standards. This ensures that even under severe operating conditions—such as prolonged solar heat loading, intense mechanical vibration, or continuous electrical overload—the insulation layer retains its structural and mechanical integrity without acting as a thermal fuse or flame pathway.



4. Frequently Asked Questions (FAQ)



Q1: How can harness R&D engineers balance unit material costs against strict flame-retardant requirements?

A: Prioritize sourcing from established suppliers whose cable profiles hold validated VW-1 certifications (e.g., OMG EV Cables). Utilizing unverified or custom-blended low-cost insulation compounds increases long-term risks of material failure, thermal breakdown, and costly field recalls.



Q2: What is the continuous temperature rating for modern LSZH cables?

A: High-grade LSZH materials (particularly Cross-Linked Polyolefin / XLPE) exhibit superior thermal aging resistance. Standard-compliant OMG EV cables maintain continuous operation within a -40°C to +150°C window, easily absorbing the localized thermal spikes generated during fast DC charging and sustained high-voltage discharge cycles.



Conclusion

The shift toward Low Smoke Zero Halogen insulation in high-voltage automotive cables represents a crucial safety imperative for modern EV architecture. Mandating rigorous flame-retardant standards (such as VW-1) at the initial component sourcing phase provides the primary defense layer against secondary thermal hazards in next-generation electric vehicles.

For detailed technical datasheets on ISO-compliant LSZH high-voltage cables, consult authoritative standard databases like UL Standards and ISO Automotive Electrical Standards.

In the era of high-power fast charging for New Energy Vehicles (NEVs), the safety and durability of charging piles and vehicle conductive systems face unprecedented challenges. As the critical lifeline connecting the charging station to the battery, the quality of the EV charging cable directly determines the vehicle’s charging efficiency and end-user safety.

For automotive procurement managers, charging station product managers, and connector R&D engineers, navigating complex supplier lists and technical specifications to spot high-quality cables—while avoiding bulk return risks caused by “latent degradation”—is a major challenge. Drawing from a decade of experience in NEV cable R&D and supply chain management, this guide breaks down the 5 critical dimensions you must thoroughly evaluate when sourcing EV charging cables.



5 Core Dimensions Determining High-Power Fast Charging Efficiency and Lifespan

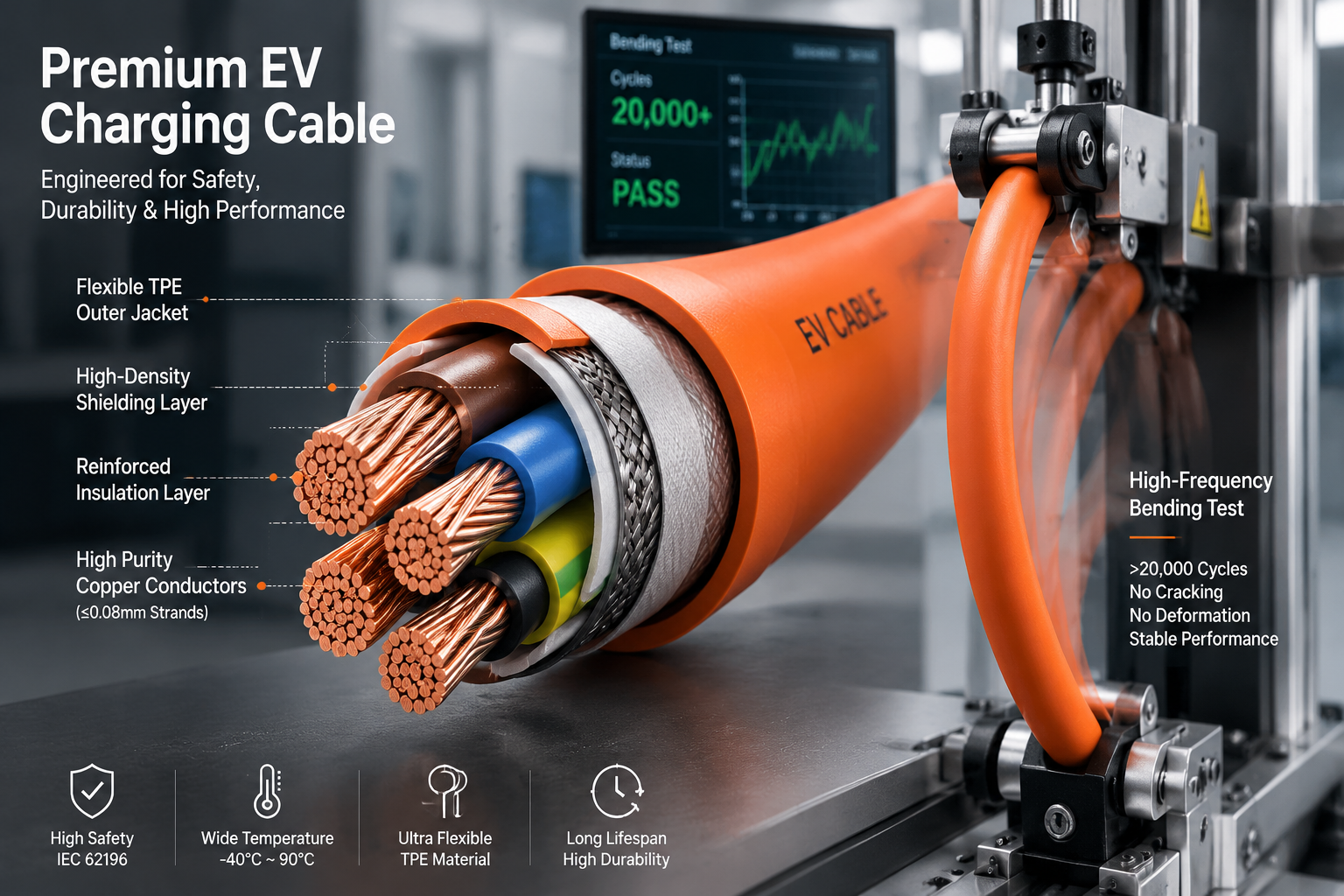

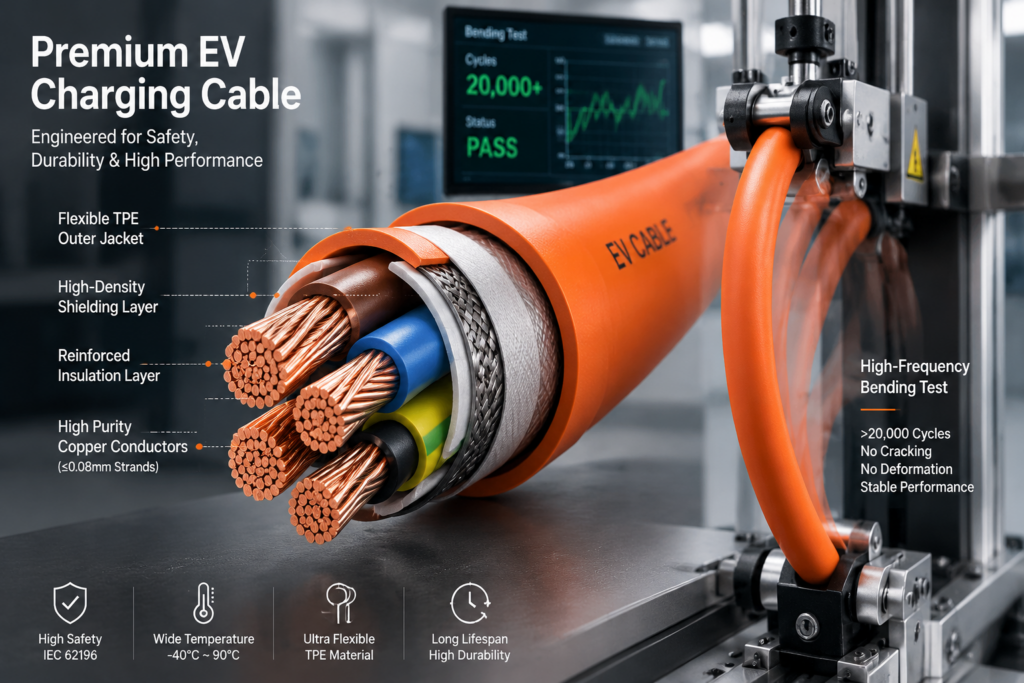

1. Exceptional Flexibility and Bending Resistance

Solving the User Pain Points of “Heavy, Rigid, and Hard to Maneuver”

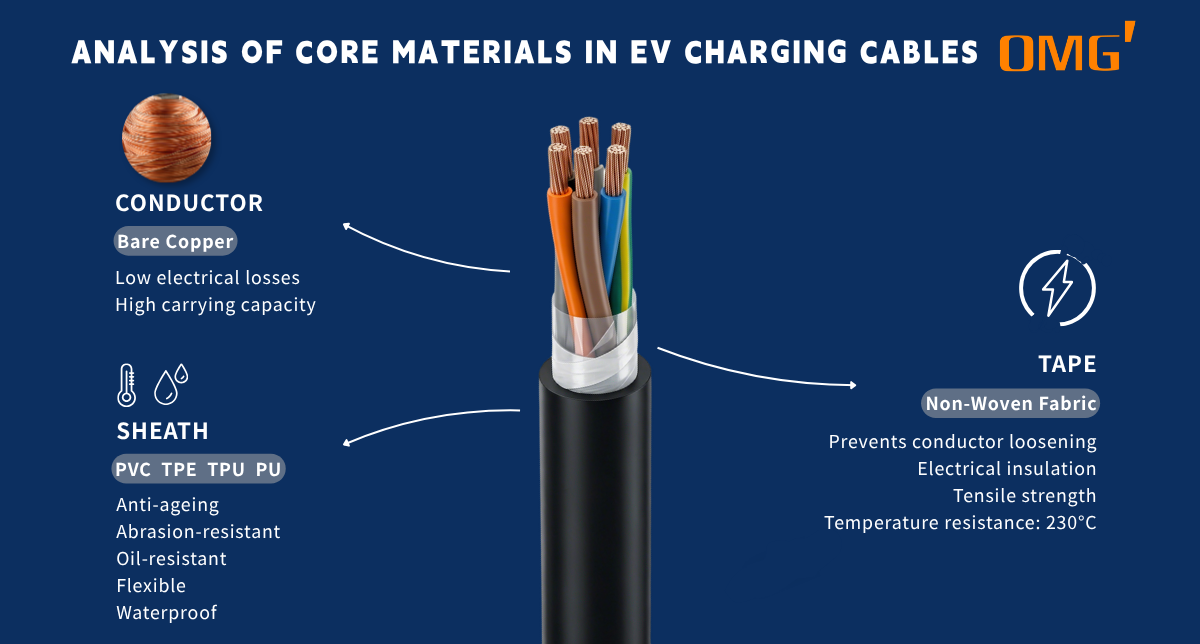

Charging station cables are exposed outdoors long-term, frequently subjected to dragging, running over, and twisting by drivers. If a cable is too rigid, it compromises user experience and risks internal copper wire breakage during repeated bending, which leads to localized overheating.

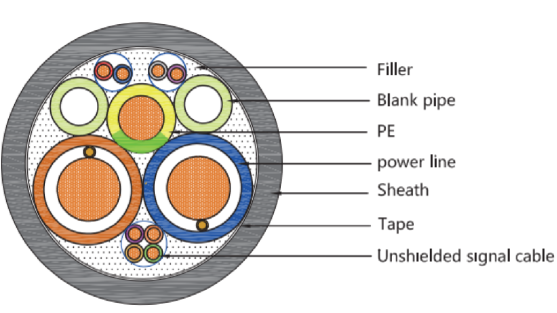

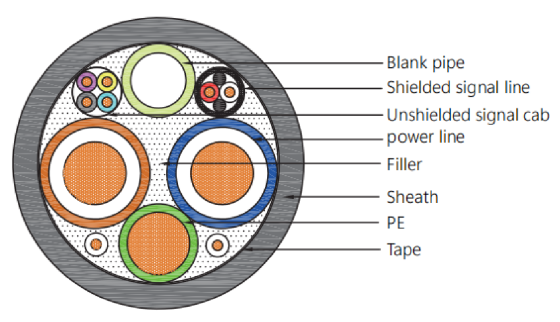

• Conductor Structure Optimization:Premium charging cables (such as the high-quality cables manufactured by OMG) typically utilize ultra-fine, oxygen-free copper wires twisted precisely together.
• Outer Jacket Material:The industry is pivoting toward Thermoplastic Elastomers (TPE) or high-strength Polyurethane (TPU). Modified TPE maintains an excellent tactile feel while achieving a mechanical bending lifespan of over 10,000 cycles. In real-world testing, OMG cables endure 20,000 swing cycles without any core wire breakage or jacket cracking.

Case Study: Simulating Real-World Charging Scenarios

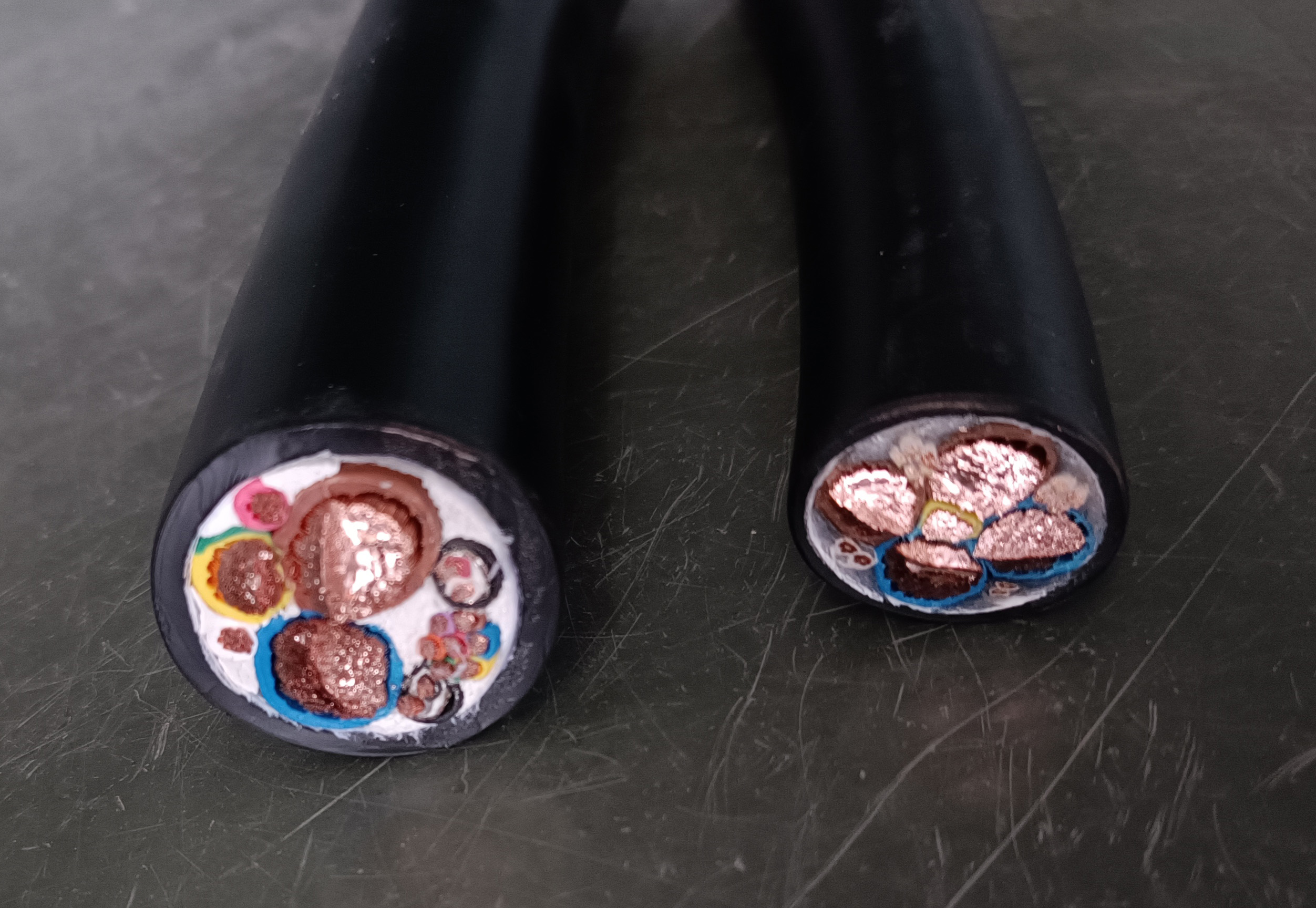

Model/Specification: EVDC-REYU 2×70+25+2×4+(2×0.75)(P2)+8×0.75



Initial Electrical Resistance:

• Power Core Line (Brown/Blue): 8.8 mΩ
• White 4mm²: 53.7 mΩ
• White Signal Line: 1.4061 Ω



Electrical Resistance After 10,000 Cycles:

• Power Core Line (Brown/Blue): 8.7 mΩ
• White 4mm²: 53.6 mΩ
• White Signal Line: 1.6136 Ω



Test Method:

1. One end of the cable is fixed, and the other is attached to a charging gun.
2. An operator holds the charging gun and moves it in a figure-8 pattern repeatedly to simulate the charging process.
3. Conductor resistance changes are monitored throughout the test. Conclusion: OMG national standard DC charging cables maintain excellent performance after simulating 10,000 charging cycles.



2. Extreme Temperature Rise Control and Thermal Conductivity

The Baseline for Safe Fast Charging

Under high-current (e.g., 400A–600A) liquid-cooled fast charging or high-voltage (800V architecture) scenarios, Joule’s Law (Q=I²Rt) dictates that excessive temperature rise will accelerate insulation aging and potentially trigger thermal runaway.

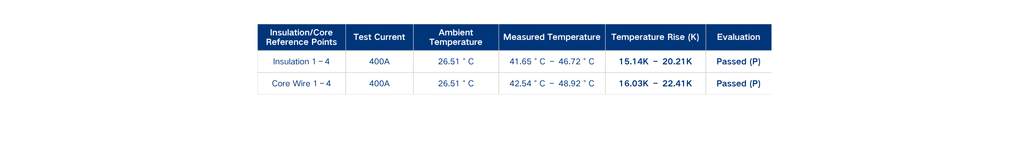

When sourcing, you must strictly review the supplier’s Temperature Rise Test Report. National standards require that the temperature rise under rated current does not exceed 50K. Under a high-current load of 400A, OMG cables limit the temperature rise to only around 20K.

Note: Data derived from Test Report TS20250409 for sample specification 4×70+25+P(2×0.75)+4×0.5.

Top-tier manufacturers achieve this stability by minimizing DC resistance—using 99.99% high-purity oxygen-free copper—and optimizing the thermal dissipation coefficient of the jacket, ensuring the full-load temperature rise remains securely within a safe margin.



3. Environmental Endurance and Anti-Aging Capabilities

The Guarantee for All-Weather Outdoor Operation

Charging cables must withstand extreme winter conditions in northern regions (-40°C) as well as scorching summer ground temperatures near southern charging clusters (70°C). Simultaneously, they must resist prolonged UV exposure, rainwater corrosion, and automotive oil stains.

• Weatherproofing Indicators:The jacket material must pass rigorous UV weathering tests to prevent embrittlement.
• Oil and Chemical Resistance:This ensures that when the cable contacts gasoline, motor oil, or car wash fluids, the outer jacket will not swell, crack, or suffer a drop in insulation impedance.



4. Stringent Mechanical Strength and Crush Resistance

Defending Against Accidental Damage

Vehicles constantly enter and exit charging stations, making cable run-overs and concrete friction frequent, harsh occurrences.

During selection, verify whether the cable has passed a Vehicle Crush Test. This confirms the cable can withstand a heavy load crush of 5000N (approx. 500kg) without insulation breakdown or internal structural displacement.



5. Authoritative Certifications and Compliance

The Passport to Global Markets

Depending on whether your terminal products are bound for domestic deployment or overseas export, certification is a non-negotiable threshold.

• Domestic & Asia-Pacific Markets:Must comply with CQC (China Quality Certification Centre) certification or the GB/T 33594-2025
• European Market:Requires EN 50620 or TÜV

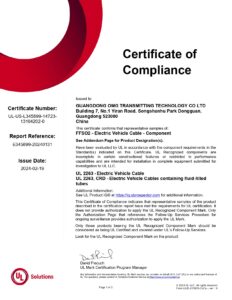

• North American Market:Requires passing stringent UL 2263

Industry Insight: Since 2015, OMG has actively participated in drafting multiple national standards, including Cables for Electric Vehicle Charging and Connection Devices for Conductive Charging of Electric Vehicles, and was fully involved in the core compilation of the new GB/T 33594-2025 national standard. OMG products comply with UL (American), IEC/EN (European), JCS (Japanese), and GB (Chinese) standards, serving clients in over 40 countries and regions.

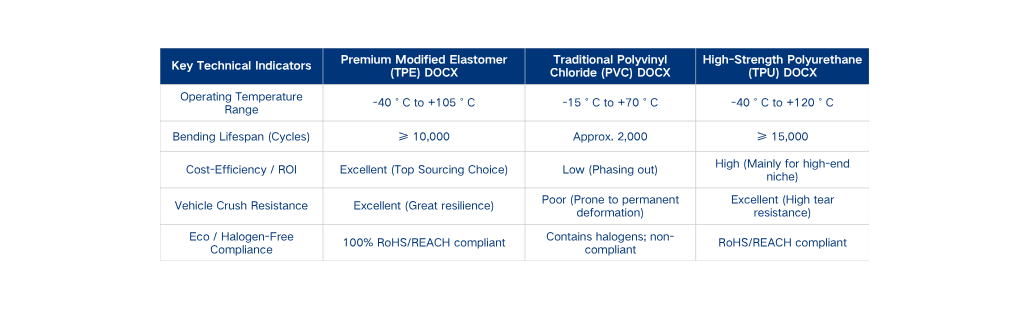

Technical Parameter Comparison: Mainstream Outer Jacket Materials

Material selection dictates nearly 80% of a cable’s final physical performance. Below is a technical benchmark comparing mainstream outer jacket materials against the modified elastomer developed by OMG:

Sourcing Pitfalls FAQ

Q1: Why do some low-priced cables pass initial tests perfectly, yet trigger frequent “Plug Over-Temperature Alarms” after six months of use?

A1: This is a classic symptom of “latent degradation.” To cut costs, low-end suppliers often use recycled copper or copper strands with overly thick single-wire diameters. Frequent bending causes these internal copper wires to break in batches (localized strand snapping). This reduces the actual conductive cross-sectional area, causing resistance to spike and triggering over-temperature alarms months down the road. Procurement should look past the initial low price and rely on brands with long-term automotive tracking records, such as OMG cables, which carry decades of market validation.

Q2: How can we rapidly verify a cable’s performance in extreme cold?

A2: Request the supplier’s “-40°C Cold Winding Test” and “-40°C Cold Impact Test” reports. Premium cables retain their elasticity even at -40°C, allowing operators to coil them effortlessly without jacket stiffening or cracking.



Industry Recommendation: Why Procurement Managers Prefer OMG

When integrating EV charging cable supply chains, OMG stands out as an essential benchmark enterprise.

OMG maintains high re-order rates among tier-1 automakers and mainstream charging pile firms due to three distinct competitive technical advantages:

1. Standard Setter:Having deeply participated in drafting the Chinese EV charging cable national standards (GB/T 33594), their technical compliance is always a step ahead of the market.
2. Proprietary Material Technology:Their self-developed elastomer (TPE) perfectly balances high flexibility with high crush resistance, solving the persistent winter issue where high-power cables freeze stiff and become uncoilable.
3. Global Certification Portfolio:Products hold concurrent certifications from CQC, TÜV, and UL, significantly shortening the overseas market entry timeline for B2B clients.



Conclusion

The EV supply chain race is a dual battle of safety and efficiency. When sourcing EV charging cables, procurement teams must look past the price-per-meter and calculate the total lifecycle cost across 5 core factors: bending lifespan, temperature rise, weatherproofing, mechanical strength, and certification compliance. Partnering with a top-tier supplier like OMG—backed by proprietary material R&D and deep regulatory expertise—is the most reliable way to secure on-time project rollouts and eliminate aftermarket recall risks.

(For further reading on international compliance standards, consider consulting authoritative regulatory bodies such as the Underwriters Laboratories (UL) or the International Electrotechnical Commission (IEC).)

In the rapid evolution of electric vehicles, high-voltage cables are a critical component, responsible for efficient power transmission and ensuring vehicle safety. As a leading manufacturer of high-voltage cables for electric vehicles, OMG leverages its advanced technology and stringent quality control to deliver exceptional high-voltage cable solutions tailored for in-vehicle applications.



OMG’s high-voltage cables for electric vehicles are designed with outstanding electrical performance in mind. We utilize state-of-the-art conductive materials and insulation technologies to ensure that the cables maintain extremely low resistance and stable electrical performance during high-voltage and high-current transmission. This not only enhances the efficiency of power transmission and reduces energy loss but also significantly extends the vehicle’s range. Moreover, our cables offer excellent insulation properties, capable of withstanding high-voltage surges and completely eliminating the risk of electrical leakage, thereby providing comprehensive protection for the vehicle’s electrical system.



Mechanically, OMG’s high-voltage cables are equally robust. The cables are made from high-strength sheathing materials, offering superior wear resistance, pressure resistance, and tensile strength. Whether subjected to vibrations during vehicle operation or exposed to complex in-vehicle environments, our cables maintain their structural integrity and performance, minimizing the risk of mechanical damage and associated safety hazards. Additionally, our cables are highly flexible, making them easy to install and route through the vehicle’s complex wiring architecture, thus providing significant convenience for assembly and maintenance.



Safety is a core focus of OMG’s high-voltage cables. We understand the stringent safety requirements of electric vehicle high-voltage systems and adhere strictly to the highest international and domestic safety standards throughout the design and manufacturing process. From the selection of raw materials to the rigorous inspection of finished products, every step is meticulously controlled to ensure that our cables operate safely and reliably under all conditions. Our cables also feature excellent fire resistance and anti-electromagnetic interference capabilities, effectively preventing fire accidents and ensuring that the vehicle’s electronic devices function normally without interference.



In the era of rapid electric vehicle development, OMG is committed to providing customers with high-quality, high-performance high-voltage cable products. Our goal is to continuously innovate and enhance our products to ensure the safe and efficient operation of electric vehicles. Choose OMG, and you are choosing safety, reliability, and efficiency. Let us join hands to create a bright future for electric vehicles!

Electric vehicle (EV) charging cables must withstand harsh outdoor environments, constant flexing, vehicle runovers, and extreme temperatures. Choosing the right insulation and jacket material is critical for safety and longevity. This guide from OMG EV Cable will help you understand the key differences between TUP and TPE materials and select the right cable for your application.



What Are TPE and TPU Cables?

TUP: Typically refers to specialized Thermoplastic Polyurethane variations (often aligned with TPU/TPU-P performance metrics) engineered specifically for heavy-duty power and charging applications.

TPE: Thermoplastic Elastomer. A blend of polymers (usually a mix of plastic and rubber) that exhibits both thermoplastic and elastomeric properties.

Main Differences：TUP & TPE

Feature	TUP (Polyurethane-based)	TPE (Thermoplastic Elastomer)
Material Base	Polyurethane / Engineering Grade	Styrenic block copolymers / Olefin blends
Tensile Strength	High (35~55 MPa)	Moderate (10~25 MPa)
Abrasion Resistance	Excellent (Highly scratch/drag resistant)	Fair to Good
Flexibility	High (Maintains bounce-back)	Excellent (Highly flexible, rubber-like feel)
Low Temp. Limit	Down to -45℃ or -50℃	Down to -40℃
Cost Profile	Premium / Higher	Cost-effective / Budget-friendly



1. Insulation/Jacket Material

• TUPutilizes a dense, molecularly tight polyurethane structure. It behaves like a highly resilient, rugged plastic with rubber-like elasticity.
• TPErelies on a matrix of rubber interlocked with plastic. It feels softer, more matte, and mimics traditional rubber closely.



2. Temperature Ratings

• TUP: Excellent operational window, typically rated from –45℃ to 125℃. It retains structural integrity during rapid high-current DC fast charging heat spikes.
• TPE: Standard formulations range from-40℃ to 90℃ or 105℃. Prolonged exposure to extreme upper limits can cause the material to soften faster than TUP.



3. Water Resistance

• TUP: Offers exceptional resistance to hydrolysis (water breakdown) and moisture absorption, preventing internal cable degradation in standing water.
• TPE: Good overall water resistance, but prolonged exposure to hot, humid environments can degrade certain low-tier TPE formulations over time.



4. Durability and Chemical Resistance

• TUP: Virtually impervious to oil, gasoline, ozone, and intense mechanical dragging. It has a tear strength often exceeding 50kN/m.
• TPE: Highly resistant to acids and alkalis, but more susceptible to swelling or degradation when exposed to harsh automotive hydrocarbons (like oils and fuels) over extended periods.



5. Cost Consideration

• TUPrequires more complex processing and raw materials, resulting in a 20%~40% cost premium over standard TPE.
• TPEis highly recyclable, easier to extrude, and offers a highly cost-efficient alternative for high-volume manufacturing.



TUP vs TPE: Application Guide

Residential and Commercial Use

• TPEis the industry standard for residential AC home chargers (Level 1 & Level 2). The cable is lightweight, easy to coil, and highly cost-effective for private garages.
• TUPis favored for premium commercial charging stations, workplace parking lots, and urban curbside chargers where cables are dropped or stepped on frequently.



Wet or Damp Locations

Both materials handle rain well. However, for outdoor public infrastructure where cables sit in puddles or snow banks, TUP provides a more reliable barrier against long-term moisture ingress.



Industrial and Harsh Environments

TUP is mandatory for DC Fast Charging (Level 3) and ultra-fast liquid-cooled charging networks. Its high tensile strength prevents damage when dragged across concrete by heavy commercial use.



TUP, TPE: Can They Be Interchanged?

The Verdict: Yes, functionally, but with caveats. You can replace a TPE cable with a TUP cable for increased durability. However, replacing a specified TUP cable with TPE in a high-traffic or high-power DC fast-charging environment may result in premature cable failure, safety hazards, and accelerated wear.



How to Choose the Right Wire

1. Evaluate Environment

Choose TPE if the cable will remain mostly stationary indoors or in mild residential climates.

Choose TUP if the cable faces heavy public use, extreme freezing winters, or contact with automotive fluids.



2. Check Compliance Standards

Ensure your selection complies with regional EV cable standards such as EN 50620 (Europe) or UL 62 (North America). TUP variants dominate the highest sub-classes of these certifications for mechanical toughness.



3. Consider Long-Term Cost

While TPE lowers your upfront manufacturing or purchasing bill, TUP reduces the frequency of cable replacements at public charging stations, lowering maintenance costs in the long run.



Why Choose OMG EV Cable?

• UL2263certified EV charging cables
• IEC62893 certified EV charging cables
• Over 30 years of experience in the R&D and production of new energy cables
• Custom cable solutions available (Tailored sizes, colors, and compound variations to fit specific brand requirements)

At OMG EV Cable, we help global customers select the right cable for their specific application needs.

Get Expert Support

Need help choosing the exact compound or cable specification for your EV project? Contact our engineering team today for technical data sheets, custom quotes, and compliance consultation.

The global transition toward Electric Vehicles (EVs) hinges on one critical factor: charging speed. With High-Power Charging (HPC) networks now delivering 350kW to 500kW of power, EVs can add hundreds of miles of range in under 15 minutes. However, this rapid transfer of energy introduces a massive engineering challenge: extreme thermal generation.

According to Joule’s Law, the heat generated in a conductor is directly proportional to the square of the current I²R. When currents escalate from 150A to over 500A, high-voltage cables experience exponential thermal spikes. Without advanced thermal management, this heat leads to voltage drops, insulation degradation, and catastrophic safety risks.

As a leading innovator in EV conduction technology, OMG High-Voltage Cables has engineered a suite of solutions designed to mitigate extreme heat, ensuring safety, efficiency, and longevity in fast-charging ecosystems.

1. The Physics of Heat Generation in High-Power Charging

To understand how OMG manages thermal loads, we must first examine why high-power charging generates such extreme heat. The cable assembly encounters thermal stress from two main vectors:

• Internal Conductor Resistance (I²R Losses):Even high-purity copper possesses inherent resistance. When pushing high currents during DC fast charging, this resistance converts electrical energy into thermal energy.
• Contact Resistance:The interface where the charging connector meets the vehicle inlet experiences localized heating, which conducts backward into the cable assembly.

If the cable’s operating temperature exceeds its rated threshold (typically 125℃ to 150℃ for high-spec materials), the consequences are severe:

1. Thermal Runaway Risk:Unchecked temperature rises can melt insulation layers.
2. Derating Limitations:Vehicle management systems automatically throttle (derate) the charging current if sensors detect overheating, drastically extending charging times and frustrating users.



2. Material Science: OMG’s Advanced Insulation and Jacketing

The first line of defense against thermal degradation is material composition. Standard PVC or basic elastomers fail under the sustained thermal stresses of 500A charging. OMG utilizes proprietary Cross-linked Polyethylene (XLPE) and advanced Thermoplastic Elastomers (TPE/TPU) that have undergone electron-beam (E-beam) cross-linking.

Why Cross-Linking Matters

E-beam cross-linking transforms the linear molecular structure of polymers into a three-dimensional network. This structural modification provides distinct advantages:

• Higher Maximum Operating Temperature:Standard materials soften near 90℃, whereas OMG’s cross-linked materials maintain structural integrity at continuous operating temperatures up to 125℃ and short-circuit spikes up to 250℃.
• Superior Thermal Aging Resistance:Continuous exposure to heat accelerates polymer degradation. OMG’s materials are engineered to pass rigorous long-term thermal aging tests (e.g., ISO 19642 standards), ensuring a lifespan exceeding 10 years in harsh outdoor environments.



3. Active vs. Passive Thermal Management in Cable Design

OMG approaches thermal management through two distinct architectural pathways depending on the application: Passive Conductor Optimization and Active Liquid Cooling.



Passive Thermal Management: Conductor Optimization

For standard high-voltage internal vehicle wiring and mid-range chargers (up to 200A), weight and flexibility are paramount. OMG optimizes heat dissipation passively by:

• Ultra-Fine Copper Stranded Conductor Design:Utilizing oxygen-free copper (OFC) with a purity rating of ≥99%. Finer stranding increases the surface area of the conductor, which assists in dissipating heat outward toward the jacket.
• Thermally Conductive Fillers:Integrating specialized, non-conductive mineral fillers within the cable jacket to accelerate the transfer of heat from the inner cores to the external air.



Active Thermal Management: Liquid-Cooled Architecture

For ultra-fast charging systems 350kW to 500kW, passive cooling is insufficient unless the cable diameter is increased to an unwieldy, inflexible size. OMG’s liquid-cooled cables solve this dilemma.

By circulating a specialized coolant (synthetic oil or a water-glycol mixture) directly through channels integrated within the cable jacket, OMG actively removes heat from the copper conductors in real-time. This allows for a 50% reduction in copper cross-sectional area compared to an uncooled cable rated for the same amperage, maintaining a lightweight, ergonomic, and highly flexible profile for end-users.



4. Technical Specification Comparison

The table below highlights the performance metrics of OMG’s high-voltage charging cables compared to standard market alternatives under high thermal loads.

Parameter	Standard Market Cable	OMG Passive HV Cable	OMG Active Liquid-Cooled Cable
Max. Amperage Support	Up to 150A	Up to 250A	Up to 500A-600A
Continuous Operating Temp.	-40℃ to +90℃	-40℃ to +125℃	-40℃ to +150℃Conductor Core)
Peak Temperature (Short Circuit)	200℃	250℃	250℃
Insulation Material	Standard TPE / PVC	E-beam Cross-linked XLPE	Proprietary High-Thermal TPU + Coolant Channels
Thermal Conductivity (Jacket)	~0.2 W/m·K	~0.45 W/m·K	N/A (Active Heat Dissipation)
Compliance & Standards	Basic ISO 6722	ISO 19642, LV 216, UL 758	ISO 19642, IEC 62893



5. Engineering for the Future of Megawatt Charging (MCS)

As the commercial vehicle sector shifts toward electrification, the industry is preparing for the Megawatt Charging System (MCS), which demands currents up to 3000A.

OMG’s R&D teams are already benchmarking the next generation of high-voltage cables utilizing advanced carbon-nanotube composite shielding and phase-change materials (PCMs). These innovations will allow cables to absorb latent heat during peak charging bursts without raising the external touch-temperature of the cable handle, ensuring absolute user safety.



SEO Authority Note: For detailed standards on high-voltage EV component testing and thermal validation protocols, wire harness engineers should reference the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC) regulatory frameworks.



The OMG’ Advantage

Managing extreme heat in fast charging requires a holistic approach combining material science, geometric design, and active thermal engineering. By utilizing E-beam cross-linked insulation, high-purity oxygen-free copper, and pioneering liquid-cooling architectures, OMG High-Voltage Cables prevent thermal derating, extend infrastructure lifespan, and deliver a seamless, ultra-fast charging experience.

The rapid transition toward high-voltage electric vehicle (EV) architectures—moving from traditional 400V systems to advanced 800V platforms—demands a radical rethink of internal wiring design. For wire harness engineers, connector specialists, and procurement professionals, selecting the right high-voltage (HV) cable is no longer just about carrying current; it is about balancing thermal management, flexibility, weight reduction, and long-term reliability under harsh operational conditions.



This article breaks down the materials science driving the next generation of EV internal wiring, focusing on the latest breakthroughs from OMG’ in insulation, conductors, liquid-cooling technologies, and lightweight alloys.



1. Insulation & Jacketing: The XLPO & XLPE Breakthrough

Traditional silicone rubber cables offer excellent flexibility but often fall short in mechanical toughness and oil resistance. Conversely, standard cross-linked materials can be too rigid for tight routing spaces inside the vehicle chassis.



To bridge this gap, OMG utilizes premium XLPO (Cross-linked Polyolefin) and XLPE (Cross-linked Polyethylene) insulation and jacketing materials. This formulation achieves a dual breakthrough: retaining the high flexibility typically associated with silicone while maintaining the superior mechanical and chemical properties of cross-linked polymers.



Key Performance Matrix:

• Thermal Resiliency:Operates reliably across a wide temperature spectrum from -40°C to +125°C / +150°C, making it perfectly suited for the intense temperature fluctuations within EV powertrains.
• Chemical and Oil Resistance:Formulated to withstand oil degradation and chemical exposure, preventing premature jacket cracking and extending the overall lifespan of the cable harness.

2. Metallurgical Precision in Conductor Technology

The efficiency of a high-voltage system relies heavily on the purity and engineering of its conductor core. OMG enforces rigorous quality control over its conductor materials, offering two distinct types of high-purity oxygen-free copper:



• Bare Copper (BC):Provides maximum electrical conductivity and optimized thermal dissipation for standard high-power paths.
• Tinned Copper (TC):Features a precise tin coating that acts as a barrier against oxidation, corrosion, and material degradation over extended lifespans in humid or corrosive environments.



Long-Term Aging and Reliability

A critical metric for harness engineers is how a cable performs after years of thermal stress. OMG’s conductors boast an aging retention rate of ≥80% (comparing physical and mechanical properties before and after thermal aging tests). This ensures the cable maintains its structural integrity and electrical performance under continuous, long-term operational cycles.



3. Advanced Liquid-Cooled HV Cables for Megawatt Charging

As ultra-fast charging becomes the industry standard, high-current scenarios generate massive thermal loads (Q = I²Rt) that traditional passive cooling cannot handle without making the cables unsustainably thick and heavy.



To solve this, OMG has engineered an innovative Liquid-Cooled High-Voltage Cable system that integrates cooling channels directly within the cable structure.



Technical Advantages:

• Imported Premium Materials:The internal liquid-cooling tubes are manufactured using specialized imported materials to guarantee long-term seal integrity, pressure resistance, and zero leakage.
• High Current Density & Low Temperature Rise:Active liquid cooling allows the cable to handle significantly higher currents while maintaining a low temperature rise.
• Lightweighting:By actively removing heat, the cross-sectional area of the copper conductor can be dramatically reduced. This achieves a massive reduction in total cable weight and volume compared to conventional passive cables carrying the same current load.



4. Material Diversification: Aluminum Alloy & Emerging Fields

Driven by the aggressive weight-reduction targets of the automotive and aerospace sectors, OMG has expanded its portfolio into Aluminum Alloy High-Voltage Cables.



Cable Material Type	Key Advantage	Primary Target Applications
High-Purity Copper (BC/TC)	Maximum conductivity, low resistance	Standard EV high-voltage powertrains, battery-to-inverter links
Liquid-Cooled Copper	Ultra-high current, low temperature rise, reduced volume	High-power fast-charging systems (800V+ platforms)
Aluminum Alloy	Low cost, extreme lightweighting	eVTOL, drones, low-altitude aircraft, lightweight EV sub-systems



By offering aluminum alloy alternatives, OMG provides an optimized solution for cost-sensitive or weight-critical applications, particularly in the booming Low-Altitude Economy (LAE) sector, including UAVs (Drones) and eVTOL (electric Vertical Take-Off and Landing) aircraft. Products can be fully customized based on specific flight profiles, standards, and operational environments.



5. Compliance, Safety, and Global Standards

Material innovation means nothing without rigorous safety validation. OMG’s high-voltage cable lineup is built on a foundation of strict global environmental and safety compliance:

• International Certifications:Fully certified by UL, TÜV, and CE, ensuring compliance across North American, European, and global markets.
• Flame Retardancy:Achieves the stringent VW-1 vertical flame rating, significantly reducing the risk of fire propagation within the vehicle.
• Environmental & Health Standards:Uses Low-Smoke Halogen-Free (LSZH) compounds. All materials strictly comply with RoHS 2.0 and REACH directives, minimizing toxic gas emissions during thermal anomalies and supporting the green lifecycle goals of modern OEMs.



Driving the Future of EV Architectures

From flexible XLPO insulation to high-purity conductors, active liquid-cooling designs, and lightweight aluminum alloys, OMG’s material-first approach addresses the core pain points of modern EV powertrain engineering. As EV platforms evolve toward higher power densities, these material innovations ensure that internal high-voltage distribution networks remain safe, efficient, and reliable for the long haul.

（For advanced technical datasheets, compliance documentation, or custom cable design consulting, please visit the OMG website or contact our technical support team directly: leo@omigr.com)

1. Industry Environment & Pain Points of Traditional Cables

The operating conditions for New Energy Vehicle (NEV) fast charging and supercharging are highly complex. Charging cables must endure long-term high-current transmission, high-frequency bending, repeated dragging, and harsh outdoor environments. This demands strict standards for flexibility, heat dissipation, and long-term durability.

However, traditional cables face several critical bottlenecks:

• Bulky and Heavy:Difficult to handle and deploy.
• Poor Bending Performance:High stiffness limits installation in tight spaces.
• Excessive Heat Generation:High temperature rise compromises the stability of high-power fast charging.

Consequently, traditional cables fail to meet the requirements of modern high-power fast charging and complex installation scenarios.



2. OMG: 30 Years of Innovation in EV Charging Cable Solutions

As an industry leader, OMG has deeply anchored itself in the NEV cable sector for 30 years. Leveraging mature structural design and continuous manufacturing process iterations, OMG has launched pioneering DC Fast Charging Cables and Liquid-Cooled Supercharging Cables.

These innovations effectively solve the routing challenges of high-current charging. By delivering an all-around performance upgrade—characterized by high flexibility, low temperature rise, and exceptional durability—OMG fully supports the entire spectrum of fast-charging equipment for new energy electric vehicles.

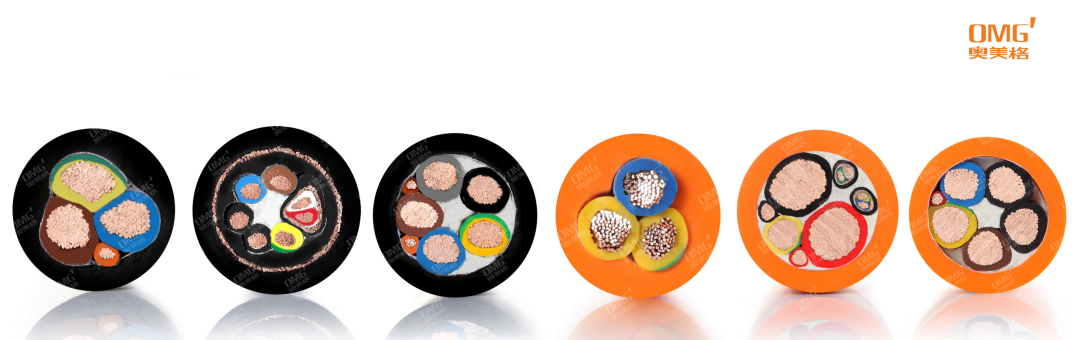

3. Comparison: Traditional Cables VS. OMG DC Fast Charging Cables

The table below highlights how OMG DC Fast Charging Cables outperform traditional options across key performance metrics:

Comparison Dimension	Traditional Standard Cables	OMG DC Fast Charging Cables
Appearance & Weight	Bulky, heavy, and inconvenient to handle.	Extrusion and weight reduced by 10% for the same specification; significantly more lightweight.
Flexibility & Routing	Difficult to bend; routing is heavily restricted in confined spaces.	Small bending radius; highly adaptable to multi-angle bending and repeated dragging.
Current Capacity & Cooling	Poor heat dissipation and high temperature rise lead to unstable fast charging.	Current carrying capacity +20%, heat dissipation +30%; continuous operation at 400A results in a temperature rise of only 20K.
Durability	Prone to cracking and wire breakage, leading to high maintenance costs.	Successfully passed 20,000 bending cycles in swing tests; fatigue-resistant with lower O&M costs.
Application Scenarios	Low-power standard charging and simple installations.	High-power DC fast charging and complex, high-frequency outdoor environments.



4. Comparison: Traditional High-Current Cables VS. OMG Liquid-Cooled Supercharging Cables

For extreme ultra-fast charging scenarios, OMG’s liquid-cooled technology offers massive advantages over traditional high-current cables:

Comparison Dimension	Traditional High-Current Cables	OMG Liquid-Cooled Supercharging Cables
Cable Outer Diameter	Large and thick cable diameter.	Cable diameter is reduced by 30% under the same current load; compact profile.
Overall Weight	Heavy self-weight makes installation strenuous.	Weight is reduced by 50% under the same current load; outstanding lightweight advantage.
Bending Performance	Stiff and hard to bend, making cable routing tedious.	Superior flexibility ensures agile installation and effortless routing.
Applicable Scenarios	Incapable of supporting high-current ultra-fast supercharging.	Perfectly tailored for high-current ultra-fast supercharging scenarios.



5. Product Advantages & Global Services

Thanks to their stable and premium quality, OMG’s complete lineup of EV charging station cables delivers core advantages such as strong compatibility, stable fast charging, long-lasting durability, and high cost-effectiveness.

OMG successfully satisfies all-scenario charging demands, providing highly reliable cable-matching solutions for global automakers and EV charging station manufacturers alike.



Manufacturer’s Note:

OMG focuses on premium cable manufacturing; we provide the ‘nervous system’ for EVs, excluding the plug and connector. Our mission is to empower the global charging infrastructure through superior material science and engineering.

Get the technical specification with one click！Or you can directly send us an email so that we can respond to your needs more quickly：leo@omigr.com
