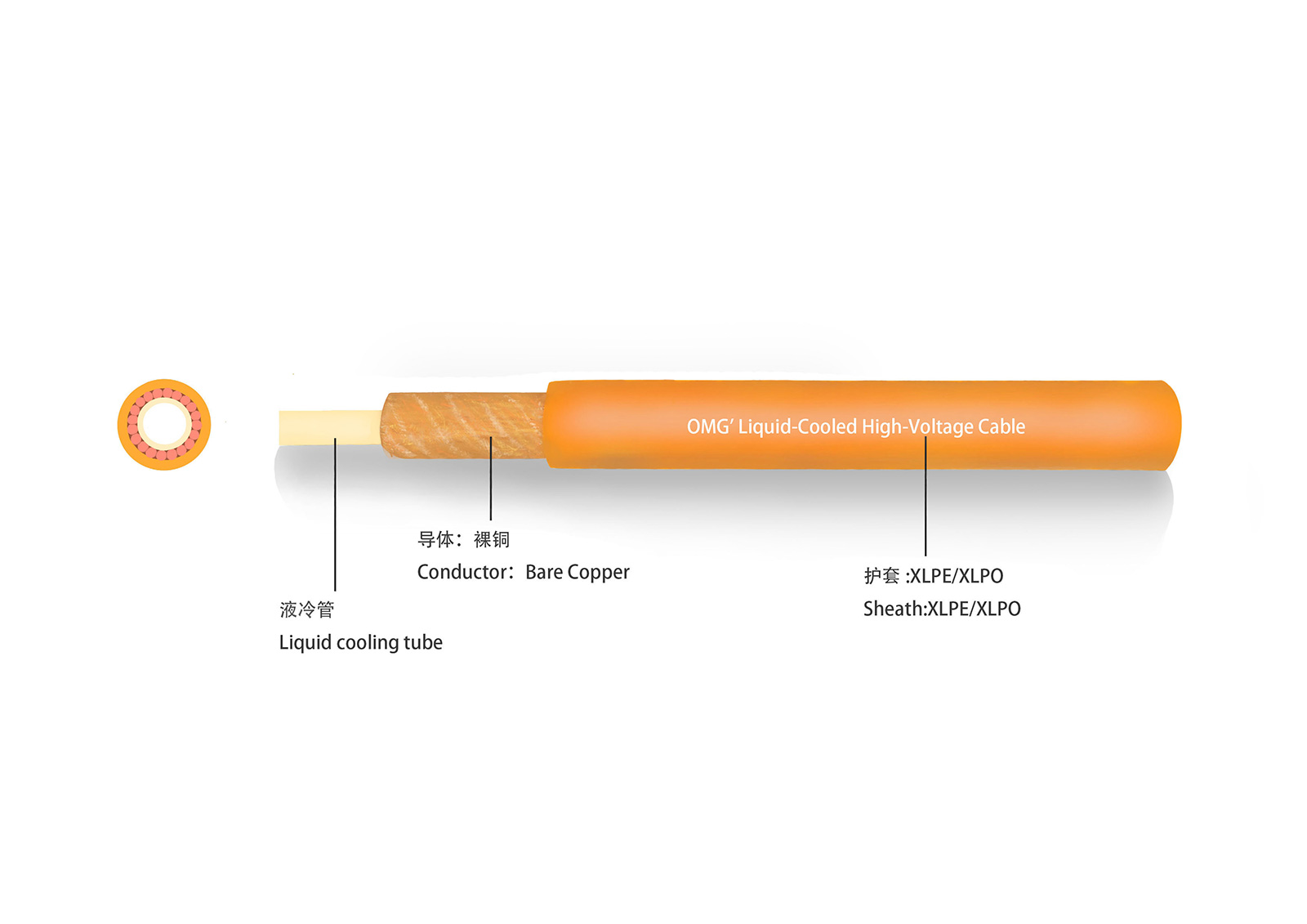

Liquid-cooled high-voltage cable
Application Scenarios
Advantages
• High current-carrying capacity, low temperature rise, lightweight design.
• Safe and reliable, with liquid-cooling tubes manufactured from pure imported materials.
• Resistant to extreme temperatures and oils, featuring high burst strength.
• Customised product solutions provided according to client requirements.
Standard
IS0 19642-2019-5、IS0 19642-2019-9
Certification
/
General Specification
Contact OMG Cable Specialists for the latest cable specifications
Cable Characteristics
|
Rated temperature |
-30℃～+125℃ |
|
Rated Voltage |
AC 600V/DC 900V；AC 1000V/DC 1500V |
|
Short-term Aging |
150℃*240h，Comply with IS0 19642 |
|
Long-term Aging |
120℃*1000h，Comply with IS0 19642 |
|
Flame Test |
VW-1,Comply with UL1581. |
|
Min Bending Radius |
:10*OD@OD﹤20mm ；12*OD@OD≧20mm |
|
Dielectric Voltage |
AC 5kV/5min |
|
Oil Resistance |
Comply With IS0 19642 |
|
Anti-tear Performance |
>20N/mm |
|
Environmental Requirements |
Compliant with RoHS 2.0 & REACH |
Specifications
|
Size (mm²) |
Conductor | Pipe | Insulation | Electrical performance | ||
| Conductor Construction n/mm |
Conductor Max Resistance AT 20°C (Ω/Km) |
Dimensions (inner diameter/outer diameter)（mm） |
Nominal Thickness (mm) |
nsulation outer diameter(mm) | Current-carrying（Max:A） | |
| 35 | 1140/0.2AS | 0.527 | 4/6 | 1.70 | 13.90±0.40 | 420 |
| 50 | 1066/0.243AS | 0.368 | 6/8 | 1.70 | 16.50±0.50 | 600 |
| 70 | 2261/0.2AS | 0.259 | 6/8 | 1.80 | 18.90±0.60 | 800 |
