IEC62893

Application Scenarios

Advantages

• High current capacity with low temperature rise: Under 400A high-current conditions, OMG cables exhibit a temperature rise of merely 20K
• Resistant to breakage and cracking: OMG cables maintain outstanding performance after simulating 10,000 charging cycles
• Lightweight design: Each metre weighs just 1.55kg with a diameter of only 27.9mm, outperforming 80% of comparable cables on the market

Standard

IEC 62893-4-1

Certification

TÜV Certification

Certificate Number: R 50677314 0001

General Specification

Contact OMG Cable Specialists for the latest cable specifications

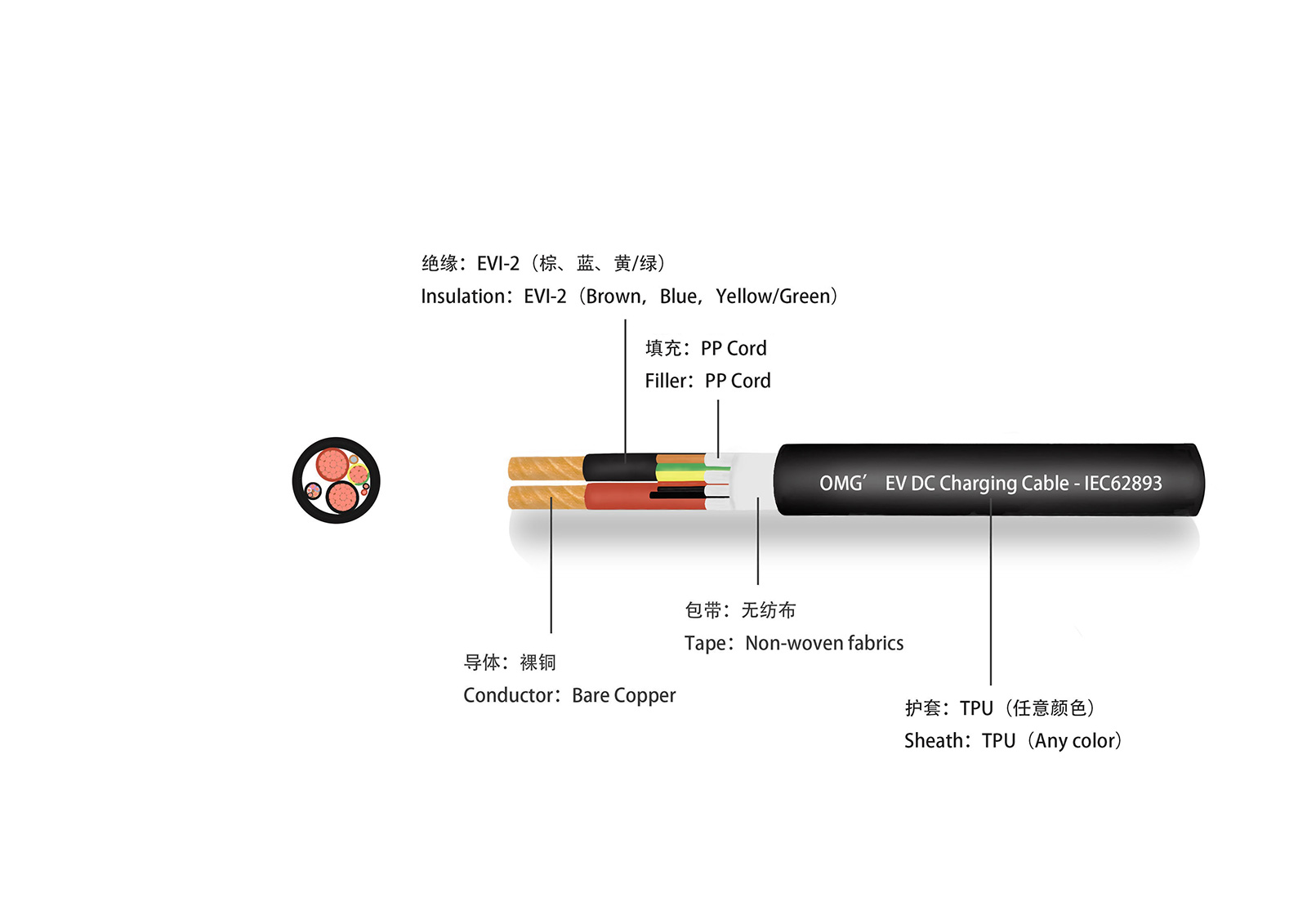

Cable Characteristics

Performance Request
Item	Request	Test Method
Rated Voltage	1.5KV DC	—
Rated Temperature	-40~90℃	—
Conductor Resistance(at 20℃)	35mm²≤0.44Ω/km；16mm²≤1.21Ω/km；10mm²≤1.91Ω/km；0.75mm²≤26Ω/km	IEC 60245-2
Insulation resistance	90℃时≥0.0034MΩ.km	IEC 60245-2
Dielectric	3.5KV AC/5min，NO Breakdown	IEC 60245-2
Bending Radius Min.	≥6 OD.	—
Flame Test	Single cable flame test	IEC 60332-1-2
Insulation tensile strength	Before Aging 8Mpa； After Aging(135℃/168H)≥75% Original	IEC 60811-501 IEC 60811-401
Insulation Elongation	Before Aging 200%； After Aging(135℃/168H)≥75% Original	IEC 60811-501 IEC 60811-401
Jacket tensile strength	Before Aging 20Mpa； After Aging(110℃/168H)≥75% Original	IEC 60811-501 IEC 60811-401
Jacket Elongation	Before Aging 300%； After Aging(110℃/168H)≥75% Original	IEC 60811-501 IEC 60811-401
Oil Resistance Test	IRM 902#，100℃/7*24H，Tensile Strength Variaion＜±40%，Elongation Variaion＜±30%	IEC 60811-404
Resistance Against acid and alkaline	168H Tensile Strength Variaion≤40%；Elongation≥100%	IEC 60811-404
Low temperature tensile test	-40℃， elongation at break＞30%	IEC 62893-2
Hot set test	200℃/15min Mechanical stress 20N/cm²，Maximum permanent deformation after cooling＜25%	IEC 60811-507

Specifications

Standard	Specifications	Outer diameter of twisted main core wire conductor	Main conductor resistance (at 20°C)	Reference Current	Finished external diameter	Packaging
IEC 62893	2×4+4+mx2.5…6 +px0.5…1.0+qx0.5…1.0 m=0 or 2， p=0…14，q=0…14，p+q≤14	3.0 Ref.	≤4.95	16-32A	Structure designed to meet standards and customer requirements	As per the order or as agreed
	2×6+6+mx2.5…6 +px0.5…1.0+qx0.5…1.0 m=0 or 2， p=0…14，q=0…14，p+q≤14	3.4 Ref.	≤3.30	32A
	2×10+10+mx2.5…6 +px0.5…1.0+qx0.5…1.0 m=0 or 2， p=0…14，q=0…14，p+q≤14	4.5 Ref.	≤1.91	40A
	2×16+16+mx2.5…6 +px0.5…1.0+qx0.5…1.0 m=0 or 2， p=0…14，q=0…14，p+q≤14	5.7 Ref.	≤1.21	63A
	2×25+16+mx2.5…6 +px0.5…1.0+qx0.5…1.0 m=0 or 2， p=0…14，q=0…14，p+q≤14	7.1 Ref.	≤0.78	100A
	2×35+16+mx2.5…6 +px0.5…1.0+qx0.5…1.0 m=0 or 2， p=0…14，q=0…14，p+q≤14	8.4 Ref.	≤0.554	125A
	2×50+25+mx2.5…6 +px0.5…1.0+qx0.5…1.0 m=0 or 2， p=0…14，q=0…14，p+q≤14	10.1 Ref.	≤0.386	150-200A
