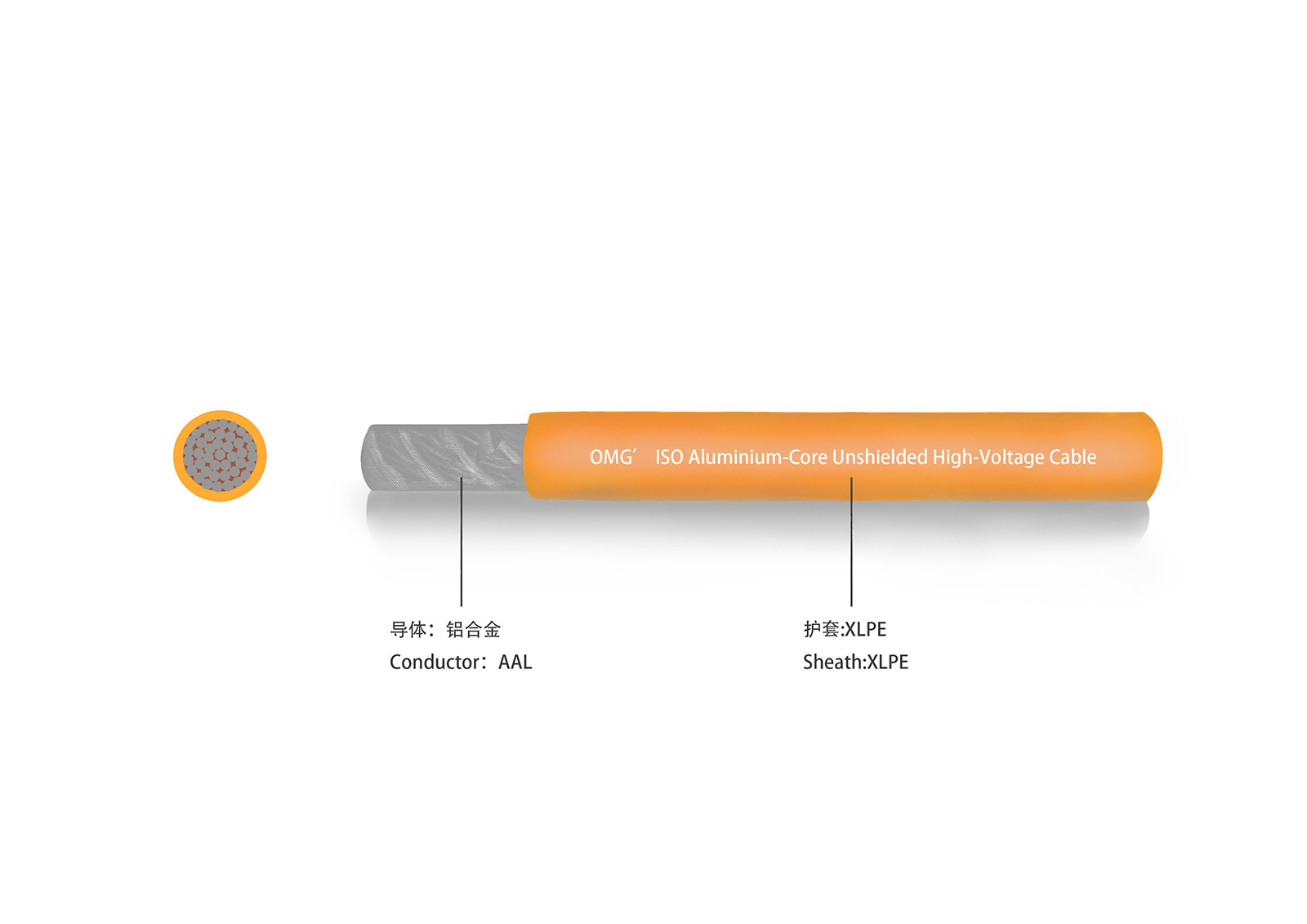

ISO aluminum core high voltage cable
Application Scenarios
Advantages
• Lightweight and highly flexible, suitable for low-altitude aircraft applications including drones and eVTOLs
• Resistant to extreme temperatures, oils, acids, alkalis, water, abrasion, and cracking
• Excellent flame retardancy and conductivity with low thermal rise
• CE certification obtained
• Customisable products tailored to client requirements or operational scenarios based on reference standards, with technical support provided
Standard
ISO19642、ISO6722
Certification
/
General Specification
Contact OMG Cable Specialists for the latest cable specifications
Cable Characteristics
|
Rated temperature |
-40℃～+(125℃，150℃) |
|
Rated Voltage |
AC 600V/DC 900V；AC 1000V/DC 1500V |
|
Short-term Aging |
150℃*240h；175℃*240h，Comply with IS0 19642 |
|
Long-term Aging |
125℃*3000h；150℃*3000h，Comply with IS0 19642 |
|
Flame Test |
Comply With IS0 19642 |
|
Min Bending Radius |
4*OD@OD﹤15mm ；6*OD@OD≧15mm |
|
Dielectric Voltage |
AC 5kV/5min；AC 10kV/5min. No Breakdown |
|
Oil Resistance |
Comply With IS0 19642 |
|
Anti-tear Performance |
>20N/mm |
|
Environmental Requirements |
Compliant with RoHS and REACH |
Specifications
|
AC600V/DC900V single-core unshielded (temperature resistant to 125℃) |
||||||
|
Customer drawing number |
Conductor |
Insulation |
Remark |
|||
|
Size(mm²) |
Outer diameter (mm) OD |
Maximum resistance Ω/km |
Nominal thickness / minimum thickness (mm) |
Outer diameter (mm) OD |
Reference weight (kg/m) |
|
|
SD-16000-01 |
10 |
4.50Ref. |
3.21 |
0.58/0.47 |
5.70±0.15 |
0.044 |
|
SD-16000-02 |
16 |
5.20Ref. |
2.05 |
0.62/0.50 |
6.50±0.15 |
0.062 |
|
SD-16000-03 |
20 |
6.10Ref. |
1.69 |
0.62/0.50 |
7.40±0.20 |
0.078 |
|
SD-16000-04 |
25 |
7.00Ref. |
1.31 |
0.62/0.50 |
8.30±0.25 |
0.099 |
|
SD-16000-05 |
35 |
8.30Ref. |
0.931 |
0.74/0.60 |
9.80±0.25 |
0.138 |
|
SD-16000-06 |
40 |
8.60Ref. |
0.835 |
0.81/0.65 |
10.30±0.30 |
0.154 |
|
SD-16000-07 |
50 |
9.80Ref. |
0.650 |
0.81/0.65 |
11.50±0.30 |
0.194 |
|
SD-16000-08 |
60 |
10.50Ref， |
0.556 |
0.90/0.72 |
12.30±0.50 |
0.224 |
|
SD-16000-09 |
70 |
11.60Ref. |
0.457 |
0.90/0.72 |
13.40±0.50 |
0.268 |
|
SD-16000-10 |
85 |
13.20Ref， |
0.387 |
1.00/0.80 |
15.20±0.60 |
0.334 |
|
SD-16000-11 |
95 |
13.80Ref. |
0.346 |
1.00/0.80 |
15.80±0.60 |
0.364 |
|
AC600V/DC900V single-core unshielded (Temperature resistance 150℃) |
||||||
|
Customer drawing number |
Conductor |
Insulation |
Remark |
|||
|
Size(mm²) |
Outer diameter (mm) OD |
Maximum resistance Ω/km |
Nominal thickness / minimum thickness (mm) |
Outer diameter (mm) 0D |
Reference weight (kg/m) |
|
|
SD-16001-01R150 |
10 |
4.50Ref. |
3.21 |
0.58/0.47 |
5.70±0.15 |
0.044 |
|
SD-16001-02R150 |
16 |
5.20Ref. |
2.05 |
0.62/0.50 |
6.50±0.15 |
0.062 |
|
SD-16001-03R150 |
20 |
6.10Ref. |
1.69 |
0.62/0.50 |
7.40±0.20 |
0.078 |
|
SD-16001-04R150 |
25 |
7.00Ref. |
1.31 |
0.62/0.50 |
8.30±0.25 |
0.099 |
|
SD-16001-05R150 |
35 |
8.30Ref. |
0.931 |
0.74/0.60 |
9.80±0.25 |
0.138 |
|
SD-16001-06R150 |
40 |
8.60Ref. |
0.835 |
0.81/0.65 |
10.30±0.30 |
0.154 |
|
SD-16001-07R150 |
50 |
9.80Ref. |
0.650 |
0.81/0.65 |
11.50±0.30 |
0.194 |
|
SD-16001-08R150 |
60 |
10.50Ref. |
0.556 |
0.90/0.72 |
12.30±0.50 |
0.224 |
|
SD-16001-09R150 |
70 |
11.60Ref. |
0.457 |
0.90/0.72 |
13.40±0.50 |
0.268 |
|
SD-16001-10R150 |
85 |
13.20Ref. |
0.387 |
1.00/0.80 |
15.20±0.60 |
0.334 |
|
SD-16001-11R150 |
95 |
13.80Ref. |
0.346 |
1.00/0.80 |
15.80±0.60 |
0.364 |
