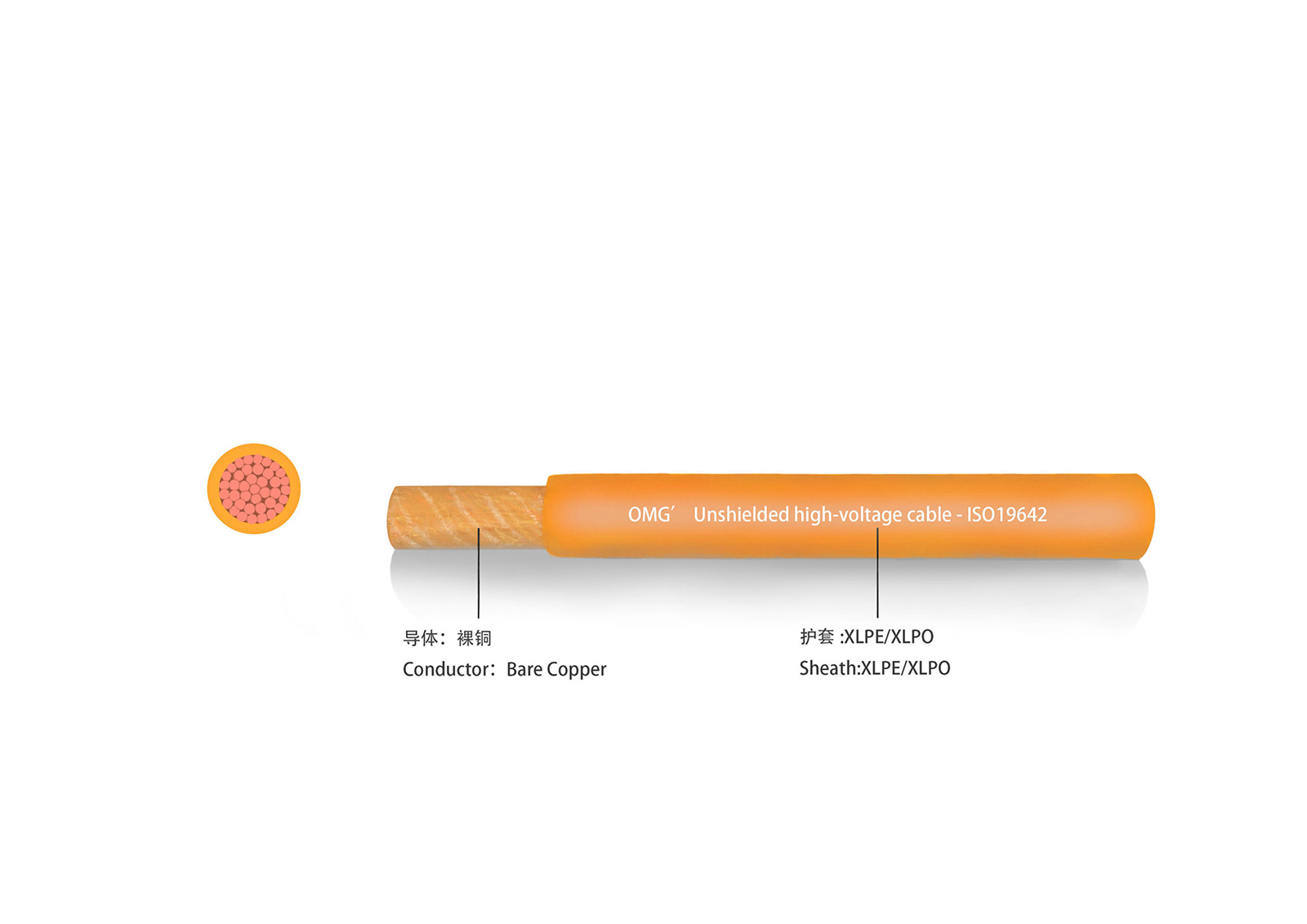

ISO19642 High Voltage Cables
Application Scenarios
Advantages
• Resistant to high and low temperatures, oils, acids and alkalis, water, abrasion, and cracking
• Excellent flame retardancy and conductivity with low temperature rise
• Retains cross-linked material properties in flexible cables, meeting most flexibility requirements
• Utilises low-smoke, halogen-free compounds
• CE certified
• All materials comply with RoHS 2.0 environmental standards
Standard
IS0 19642-2019-5、IS0 19642-2019-9
Certification
/
General Specification
Contact OMG Cable Specialists for the latest cable specifications
Cable Characteristics
|
Rated temperature |
-40℃～+(125℃，150℃) |
|
Rated Voltage |
AC 600V/DC 900V；AC 1000V/DC 1500V |
|
Short-term Aging |
150℃*240h；175℃*240h，Comply with ISO 19642 |
|
Long-term Aging |
125℃*3000h；150℃*3000h，Comply with ISO 19642 |
|
Flame Test |
Comply With ISO 19642 |
|
Min Bending Radius |
4*OD@OD﹤15mm ；6*OD@OD≧15mm |
|
Dielectric Voltage |
AC 5kV/5min；AC 10kV/5min. No Breakdown |
|
Oil Resistance |
Comply With ISO 19642 |
|
Anti-tear Performance |
>20N/mm |
|
Environmental Requirements |
Compliant with RoHS & REACH |
Specifications
|
AC600V/DC900V single-core shielded (SD-15107 series) |
|||||||
|
Customer drawing number |
Conductor |
Insulation |
Sheath |
||||
|
Size(mm²) |
Outer diameter OD mm |
Maximum resistance Ω/km |
Nominal thickness / minimum thickness (mm) |
Outer diameter OD mm |
Nominal thickness / minimum thickness (mm) |
Outer diameter mm 0D |
|
|
SD-15107-01 |
2.5 |
2.00Ref. |
7.6 |
0.35/0.28 |
2.70±0.15 |
0.40/0.32 |
4.10±0.20 |
|
SD-15107-02 |
4 |
2.60Ref. |
4.71 |
0.40/0.32 |
3.40±0.15 |
0.40/0.32 |
4.80±0.25 |
|
SD-15107-03 |
6 |
3.20-3.40Ref. |
3.14 |
0.40/0.32 |
4.00-4.20±0.20 |
0.60/0.48 |
5.80-6.00±0.25 |
|
SD-15107-04 |
10 |
4.20-4.40Ref. |
1.82 |
0.60/0.48 |
5.40-5.60±0.25 |
0.65/0.52 |
7.30-7.50±0.30 |
|
SD-15107-05 |
16 |
5.30-5.50Ref. |
1.16 |
0.65/0.52 |
6.60-6.80±0.25 |
0.80/0.64 |
8.80-9.00±0.30 |
|
SD-15107-06 |
25 |
6.60-6.90Ref. |
0.743 |
0.65/0.52 |
7.90-8.20±0.30 |
0.90/0.72 |
10.30-10.60±0.50 |
|
SD-15107-07 |
35 |
7.90-8.30Ref. |
0.527 |
0.80/0.64 |
9.50-9.90±0.30 |
1.00/0.80 |
12.10-12.50±0.50 |
|
SD-15107-08 |
50 |
9.40-9.90Ref. |
0.368 |
0.90/0.71 |
11.20-11.70±0.50 |
1.10/0.88 |
14.00-14.50±0.50 |
|
SD-15107-09 |
70 |
11.10-11.80Ref. |
0.259 |
1.00/0.80 |
13.10-13.80±0.50 |
1.10/0.88 |
15.90-16.60±0.60 |
|
SD-15107-10 |
95 |
13.00-13.70Ref. |
0.196 |
1.20/0.90 |
15.40-16.10±0.60 |
1.10/0.88 |
18.20-18.90±0.60 |
|
AC1000V/DC1500V single-core shielded (SD-15105 series) |
|||||||
|
Customer drawing number |
Conductor |
Insulation |
Sheath |
||||
|
Size(mm²) |
Outer diameter OD mm |
Maximum resistance Ω/km |
Nominal thickness / minimum thickness (mm) |
Outer diameter OD mm |
Nominal thickness / minimum thickness (mm) |
Outer diameter mm 0D |
|
|
SD-15105-01 |
2.5 |
2.00Ref. |
7.6 |
0.70/0.56 |
3.40±0.15 |
1.00/0.80 |
6.00±0.25 |
|
SD-15105-02 |
4 |
2.60Ref. |
4.71 |
0.80/0.64 |
4.20±0.20 |
1.10/0.88 |
7.00±0.30 |
|
SD-15105-03 |
6 |
3.20-3.40Ref. |
3.14 |
0.80/0.64 |
4.80-5.00±0.20 |
1.10/0.88 |
7.60-7.80±0.30 |
|
SD-15105-04 |
10 |
4.20-4.40Ref. |
1.82 |
1.00/0.80 |
6.20-6.40±0.25 |
1.20/0.96 |
9.20-9.40±0.30 |
|
SD-15105-05 |
16 |
5.30-5.50Ref. |
1.16 |
1.00/0.80 |
7.30-7.50±0.30 |
1.30/1.04 |
10.50-10.70±0.50 |
|
SD-15105-06 |
25 |
6.60-6.90Ref. |
0.743 |
1.30/1.04 |
9.20-9.50±0.30 |
1.40/1.12 |
12.60-12.90±0.50 |
|
SD-15105-07 |
35 |
7.90-8.30Ref. |
0.527 |
1.30/1.04 |
10.50-10.90±0.50 |
1.50/1.20 |
14.10-14.50±0.50 |
|
SD-15105-08 |
50 |
9.40-9.90Ref. |
0.368 |
1.50/1.20 |
12.40-12.90±0.50 |
1.60/1.28 |
16.20-16.70±0.60 |
|
SD-15105-09 |
70 |
11.10-11.80Ref. |
0.259 |
1.50/1.20 |
14.10-14.80±0.50 |
1.60/1.28 |
17.90-18.60±0.60 |
|
SD-15105-10 |
95 |
13.00-13.70Ref. |
0.196 |
1.60/1.28 |
16.20-16.90±0.60 |
1.90/1.52 |
20.60-21.30±0.80 |
|
AC600V/DC900V multi-core shielded (SD-15111 series) |
||||||
|
Customer drawing number |
Conductor |
Insulation |
Sheath |
|||
|
Size(mm²) |
Outer diameter OD mm |
Maximum resistance Ω/km |
Nominal thickness / minimum thickness (mm) |
Outer diameter OD mm |
Nominal thickness / minimum thickness (mm) |
|
|
SD-15111-01 |
2×1.5 |
1.60Ref. |
12.7 |
0.30/0.24 |
2.20±0.20 |
0.60/0.48 |
|
SD-15111-02 |
3×1.5 |
1.60Ref. |
12.7 |
0.30/0.24 |
2.20±0.20 |
0.60/0.48 |
|
SD-15111-03 |
4×1.5 |
1.60Ref. |
12.7 |
0.30/0.24 |
2.20±0.20 |
0.60/0.48 |
|
SD-15111-04 |
2×2.5 |
2.00Ref. |
7.6 |
0.35/0.28 |
2.70±0.20 |
0.60/0.48 |
|
SD-15111-05 |
3×2.5 |
2.00Ref. |
7.6 |
0.35/0.28 |
2.70±0.20 |
0.70/0.56 |
|
SD-15111-06 |
4×2.5 |
2.00Ref. |
7.6 |
0.35/0.28 |
2.70±0.20 |
0.70/0.56 |
|
SD-15111-07 |
2×4 |
2.60Ref. |
4.71 |
0.40/0.32 |
3.40±0.20 |
0.70/0.56 |
|
SD-15111-08 |
3×4 |
2.60Ref. |
4.71 |
0.40/0.32 |
3.40±0.20 |
0.70/0.56 |
|
SD-15111-09 |
4×4 |
2.60Ref. |
4.71 |
0.40/0.32 |
3.40±0.20 |
0.70/0.56 |
|
SD-15111-10 |
2×6 |
3.20-3.40Ref. |
3.14 |
0.40/0.32 |
4.00-4.20±0.20 |
0.70/0.56 |
|
SD-15111-11 |
3×6 |
3.20-3.40Ref. |
3.14 |
0.40/0.32 |
4.00-4.20±0.20 |
0.70/0.56 |
|
SD-15111-12 |
4×6 |
3.20-3.40Ref. |
3.14 |
0.40/0.32 |
4.00-4.20±0.20 |
0.80/0.64 |
|
SD-15111-13 |
2×10 |
4.20-4.40Ref. |
1.82 |
0.60/0.48 |
5.40-5.60±0.20 |
0.80/0.64 |
|
SD-15111-14 |
3×10 |
4.20-4.40Ref. |
1.82 |
0.60/0.48 |
5.40-5.60±0.20 |
0.80/0.64 |
|
SD-15111-15 |
2×16 |
5.30-5.50Ref. |
1.16 |
0.65/0.52 |
6.60-6.80±0.20 |
0.90/0.72 |
|
SD-15111-16 |
3×16 |
5.30-5.50Ref |
1.16 |
0.65/0.52 |
6.60-6.80±0.20 |
0.90/0.72 |
|
AC1000V/DC1500V multi-core shielded (SD-15109 series) |
||||||
|
Customer drawing number |
Conductor |
Insulation |
Sheath |
|||
|
Size(mm²) |
Outer diameter OD mm |
Maximum resistance Ω/km |
Nominal thickness / minimum thickness (mm) |
Outer diameter OD mm |
Nominal thickness / minimum thickness (mm) |
|
|
SD-15109-01 |
2×1.5 |
1.60Ref. |
12.7 |
0.60/0.48 |
2.80±0.15 |
1.20/1.00 |
|
SD-15109-02 |
3×1.5 |
1.60Ref. |
12.7 |
0.60/0.48 |
2.80±0.15 |
1.20/1.00 |
|
SD-15109-03 |
4×1.5 |
1.60Ref. |
12.7 |
0.60/0.48 |
2.80±0.15 |
1.20/1.00 |
|
SD-15109-04 |
2×2.5 |
2.00Ref. |
7.6 |
0.70/0.56 |
3.40±0.15 |
1.30/1.07 |
|
SD-15109-05 |
3×2.5 |
2.00Ref. |
7.6 |
0.70/0.56 |
3.40±0.15 |
1.40/1.10 |
|
SD-15109-06 |
4×2.5 |
2.00Ref. |
7.6 |
0.70/0.56 |
3.40±0.15 |
1.40/1.10 |
|
SD-15109-07 |
2×4 |
2.60Ref. |
4.71 |
0.80/0.64 |
4.20±0.20 |
1.40/1.10 |
|
SD-15109-08 |
3×4 |
2.60Ref. |
4.71 |
0.80/0.64 |
4.20±0.20 |
1.50/1.20 |
|
SD-15109-09 |
4×4 |
2.60Ref. |
4.71 |
0.80/0.64 |
4.20±0.20 |
1.50/1.20 |
|
SD-15109-10 |
2×6 |
3.20-3.40Ref. |
3.14 |
0.80/0.64 |
4.80-5.00±0.20 |
1.50/1.20 |
|
SD-15109-11 |
3×6 |
3.20-3.40Ref. |
3.14 |
0.80/0.64 |
4.80-5.00±0.20 |
1.50/1.20 |
|
SD-15109-12 |
4×6 |
3.20-3.40Ref. |
3.14 |
0.80/0.64 |
4.80-5.00±0.20 |
1.60/1.25 |
|
SD-15109-13 |
2×10 |
4.20-4.40Ref. |
1.82 |
1.00/0.80 |
6.20-6.40±0.30 |
1.60/1.27 |
|
SD-15109-14 |
3×10 |
4.20-4.40Ref. |
1.82 |
1.00/0.80 |
6.20-6.40±0.30 |
1.60/1.30 |
|
SD-15109-15 |
2×16 |
5.30-5.50Ref. |
1.16 |
1.00/0.80 |
7.30-7.50±0.30 |
1.70/1.35 |
|
SD-15109-16 |
3×16 |
5.30-5.50Ref. |
1.16 |
1.00/0.80 |
7.30-7.50±0.30 |
1.70/1.38 |
