JCS4522

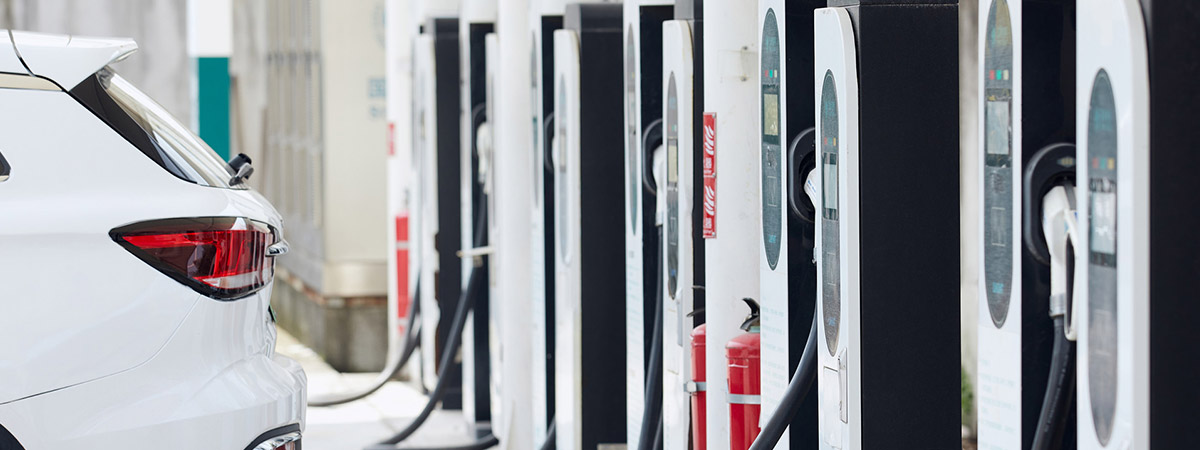

Application Scenarios
Advantages
• High current capacity with low temperature rise: Under 400A high-current conditions, OMG cables exhibit a temperature rise of merely 20K
• Resistant to breakage and cracking: OMG cables maintain superior performance after simulating 10,000 charging cycles
• Lightweight design: Each metre weighs just 1.55kg with a diameter of only 27.9mm, outperforming 80% of comparable cables on the market
• Providing bespoke DC charging solutions tailored to specific client requirements
Standard
JCS4522
Certification
TÜV certification
Certificate Number: JA 50541941
General Specification
Contact OMG Cable Specialists for the latest cable specifications

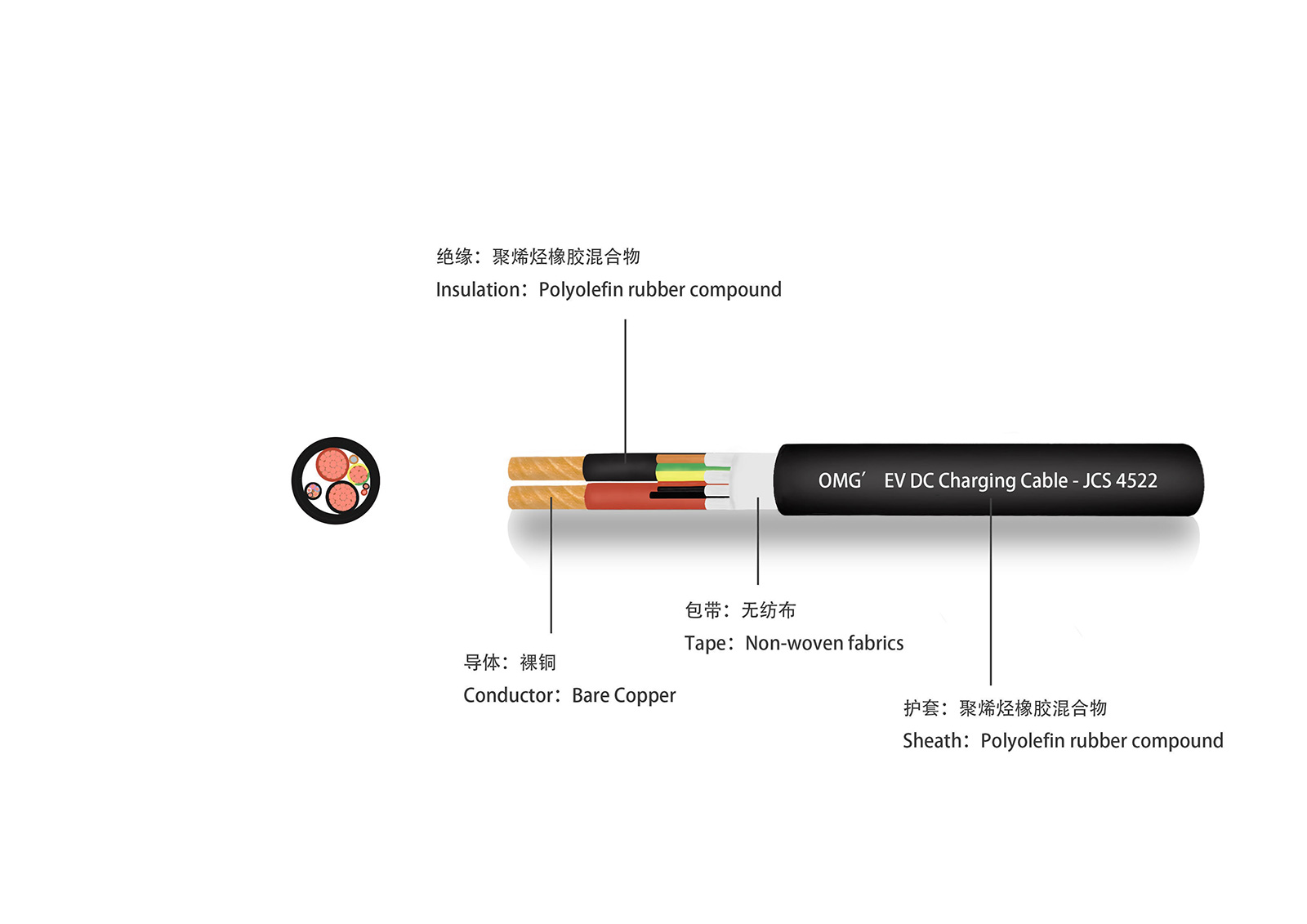

Cable Characteristics
|
Electrical Reliability Test |
||
|
Item |
Request |
Test Method |
|
Rated Voltage |
600VAC |
/ |
|
Rated Temperature |
-40℃~+105℃ |
/ |
|
Conductor Resistance(at 20℃) |
8mm²≤2.39Ω/km； 0.75mm²≤25.1Ω/km； |
JISC 3312 |
|
Insulation Resistance |
20℃ 8mm²≥40MΩ.km，0.75mm²≥50MΩ.km |
JISC 3312 |
|
Dielectric |
3KV AC/1min |
JISC 3312 |
|
Bending Radius Min. |
≥5*OD |
/ |
|
Flame Test |
The flame will go out naturally within 30 seconds |
JISC 3312 |
|
Insulation tense strength |
Before Aging 10Mpa； After Aging(100℃/48H) ≥85% Original |
JISC 3312 |
|
Jacket Elongation |
Before Aging 100%； After Aging(100℃/48H) ≥80% Original |
JISC 3312 |
|
Jacket tensile strength |
Before Aging 10Mpa； After Aging(100℃/48H) ≥85% Original |
JISC 3312 |
|
Jacket Elongation |
Before Aging 120%； After Aging(100℃/48H) ≥80% Original |
JISC 3312 |
|
High temperature winding test |
120℃±3℃， 6laps， NO Cracking |
JISC 3312 |
|
Low temperature winding test |
-10℃±1℃， 6laps， NO Cracking |
JISC 3312 |
|
Cold Bending Test |
Thickness reduction less than 50% |
JISC 3312 |
|
Hot Shock Test |
NO Cracking， less than 30% of the conductors are broken |
JISC 3312 |
Specifications
|
Standard |
Specifications |
Reference Current |
Finished external diameter |
Packaging |
|
JCS4522 |
2×35+2×1.25+2×0.75 |
120A |
Designed according to standards and customer needs. |
According to the order or agreement |
|
2×16+2×1.25+2×0.75 |
80A |
