JIS-C-3312

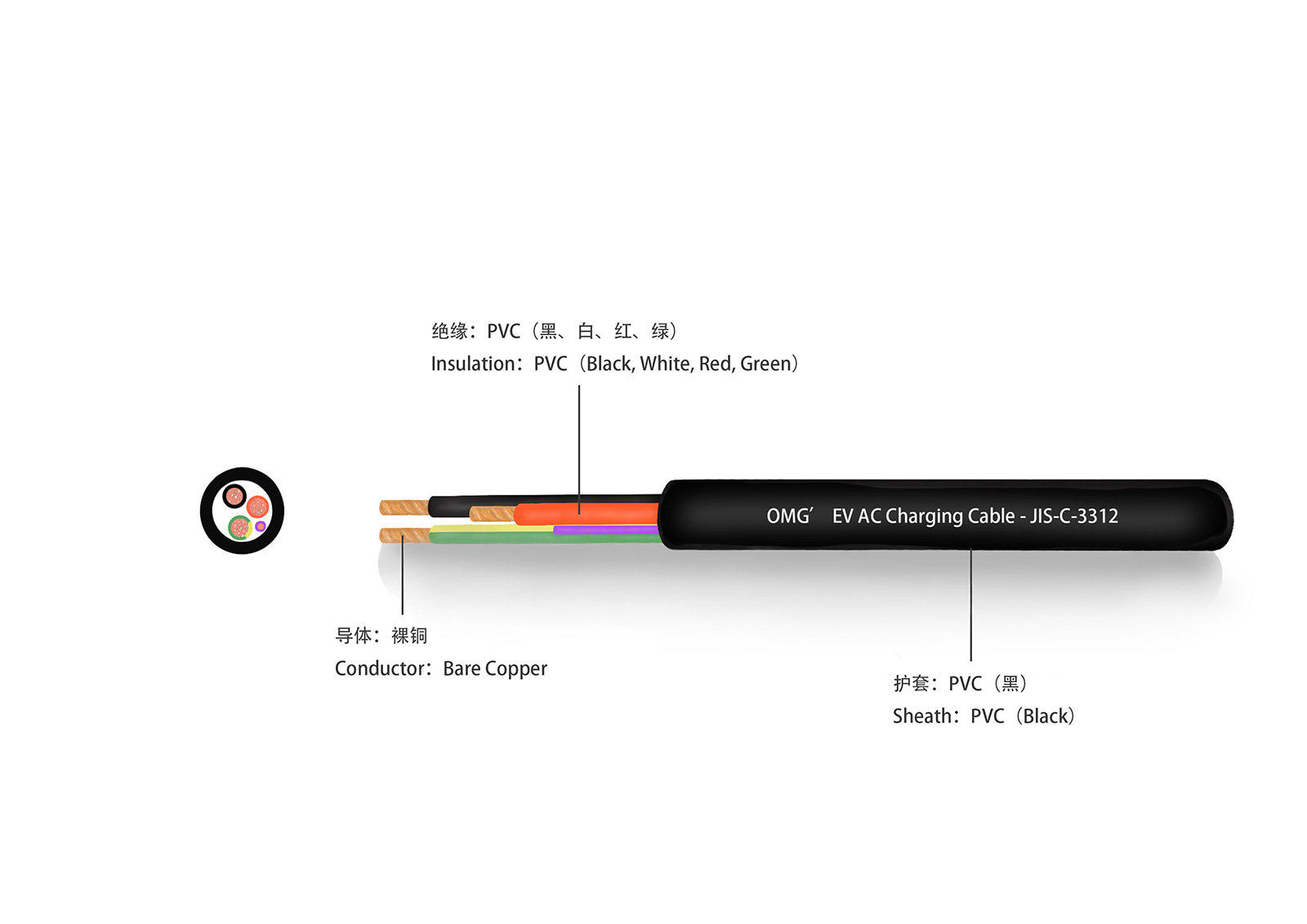

Application Scenarios

Advantages

• Voltage range compatible with multiple scenarios, suitable for diverse equipment types
• Resistant to extreme temperatures, oils, acids, alkalis, water, abrasion and cracking for secure and stable performance
• Certified by CQC and TÜV institutions
• All materials comply with RoHS 2.0 environmental standards

Standard

JIS-C-3312

Certification

CQC Certification

Certificate Number: PSE 24012814

General Specification

Contact OMG Cable Specialists for the latest cable specifications

Cable Characteristics

Electrical Reliability Test
Item	Request	Test Method
Rated Voltage	600V AC	/
Reted Temperature	－40℃~ +105℃	/
Conductor Resistance（at20℃）	3.5mm²≤5.24Ω/km；0.75mm²≤25.1Ω/km	JIS C 3312
Insulation Resistance	20℃ 3.5mm²≥40MΩ.km；0.75mm²≥50MΩ.km	JIS C 3312
Dielectric	3KV AC/1min	JIS C 3312
Bending Radius Min.	≥5*OD	/
Flame Test	The flame will go out naturally within 30 seconds	JIS C 3312
Insulation tensile strength	Before Heating：10Mpa；After Heating（100℃/48H）：≥85% of the value before heating	JIS C 3312
Insulation Elongation	Before Heating：100%；After Heating（100℃/48H）：≥80% of the value before heating	JIS C 3312
Jackets tensile strenqth	Before Heating：10Mpa；After Heating（100℃/48H）：≥85% of the value before heating	JIS C 3312
Jackets Elongation	Before Heating：120%；After Heating（100℃/48H）：≥80% of the value before heating	JIS C 3312
High temperature winding test	120℃±3℃，6laps，No Cracking	JIS C 3312
Low temperature winding test	－10℃±1℃，6laps，No Cracking	JIS C 3312
Heat deformation resistance	Reduction of Insulation and sheath thickness within 50%	JIS C 3312
Bending resistance	No Cracking，Component wire breakage in core conductors within 30%	JIS C 3312

Specifications

Standard	Specifications	Reference Current	Finished external diameter	Packaging
JIS-C-3312	3×2+0.75	12A	Structure designed to meet standards and customer requirements	As per the order or as agreed
	3×2.5+0.75	16A
	3×3.5+0.75	20A
	3×5.5+0.75	26A
	3×6+0.75	32A
	3×8+0.75	40A
