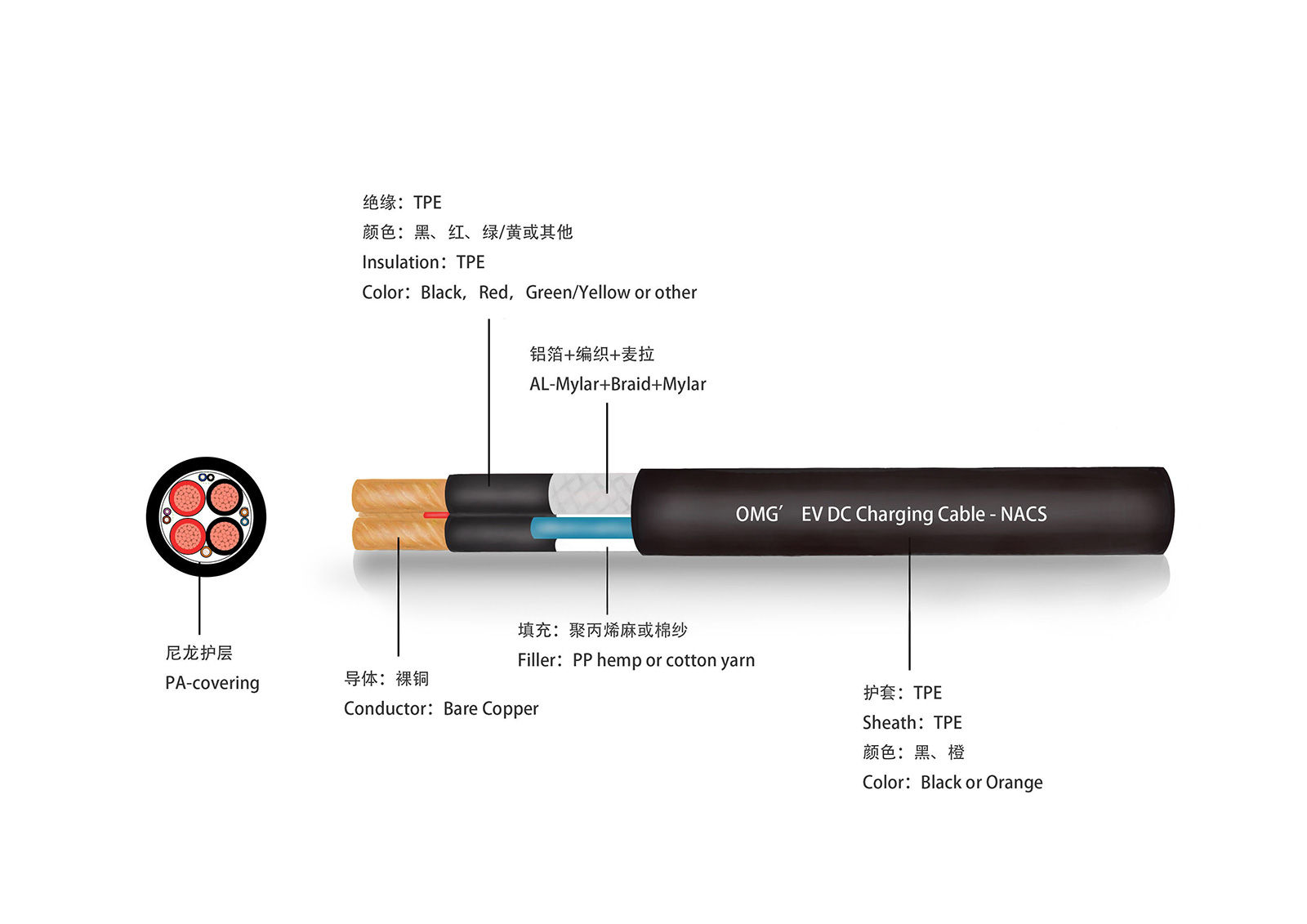

NACS
Application Scenarios
Advantages
• Small wire diameter, lightweight design
• Resistant to high and low temperatures, oil, acids and alkalis, water, abrasion, and cracking, suitable for diverse application scenarios
• One of China’s earliest manufacturers to obtain UL certification for NACS wire
• UL conducts quarterly/annual sampling inspections at production facilities to ensure consistent cable quality
Standard
UL 2263
Certification
UL&cus Certification
Certificate Number:
EVC OMG 1005：E345899-2023-10-24
EVC OMG 1006：E345899-2023-10-25
EVC OMG 1007：E345899-2023-10-26
EVC OMG 1008：E345899-20231229
EVC OMG 1009：E345899-20240612
General Specification
Contact OMG Cable Specialists for the latest cable specifications
Cable Characteristics
|
Electrical Reliability Test |
||
|
Item |
Request |
Test Method |
|
Rated Voltage |
1000V |
/ |
|
Reted Temperature |
－40℃~105℃ |
/ |
|
Conductor Resistance（at20℃） |
6AWG≤1.4Ω/km；8AWG≤2.23Ω/km；22AWG≤56.8Ω/km |
UL 2556 |
|
15℃ Insulation resistance |
6AWG≥29GΩ.m；8AWG≥34GΩ.m；22AWG≥67GΩ.m |
UL 2556 |
|
Dielectric |
4.0KV AC/1min（6AWG&8AWG），2.0KV AC/1min（22AWG） |
UL 2556 |
|
Bending Radius Min. |
≥6 OD |
/ |
|
Flame Test |
FT1 |
UL 2556 |
|
Insulation tensile strength |
Before Aging 5.5Mpa；After Aging（136℃/168H）：≥75% Original |
UL 2556 |
|
Insulation Elongation |
Before Aging 200%；After Aging（136℃/168H）：≥75% Original |
UL 2556 |
|
Jackets tensile strenqth |
Before Aging 8.3Mpa；After Aging（136℃/168H）：≥75% Original |
UL 2556 |
|
Jackets Elongation |
Before Aging 200%；After Aging（136℃/168H）：≥75% Original |
UL 2556 |
|
Cold Bending Test |
-40℃/4H，No Cracking |
UL 2556 |
|
Hot Shock Test |
150℃/1H，No Cracking |
UL 2556 |
Specifications
|
Certified Model |
Main wire specifications |
Main wire diameter |
Earth wire specifications |
Earth wire outer diameter |
Signal wire specifications |
Sheath thickness |
Finished outer diameter |
Regular products (comparative outer diameter) |
Recommended Current |
|
OMG EVC 1005 |
4×10AWG |
9.2 |
10AWG-14AWG |
3.1-4.5 |
（0-12）*（18AWG-22AWG） |
2.7 |
28.3 |
36 |
170-200A |
|
OMG EVC 1006 |
4×2AWG |
10.2 |
10AWG-14AWG |
3.1-4.5 |
（0-12）*（18AWG-22AWG） |
2.8 |
31 |
38.5 |
200-250A |
|
OMG EVC 1007 |
4×1/0AWG |
12.5 |
10AWG-14AWG |
3.1-4.5 |
（0-12）*（18AWG-22AWG） |
2.8 |
36.5 |
45.2 |
300-350A |
|
OMG EVC 1008 |
2×4AWG |
8 |
10AWG-14AWG |
3.1-4.5 |
（0-12）*（18AWG-22AWG） |
2.3 |
21 |
27.3 |
120A |
|
OMG EVC 1009 |
4×1AWG |
11.7 |
10AWG-14AWG |
3.1-4.5 |
（0-8）*（18AWG-22AWG） |
3.0 |
34 |
38 |
250-300A |
|
OMG EVC 1010 |
2×2/0AWG |
13.8 |
4AWG |
8.0 |
（0-12）*（18AWG-22AWG） |
2.85 |
33.5 |
41 |
200A |
|
OMG EVC 1011 |
4×1/0AWG |
12.5 |
4AWG |
8.0 |
（0-12）*（18AWG-22AWG） |
2.85 |
37 |
46 |
300-350A |
|
Signal wire specifications: 16 AWG to 22 AWG, typically 0 to 12 strands. |
|||||||||
