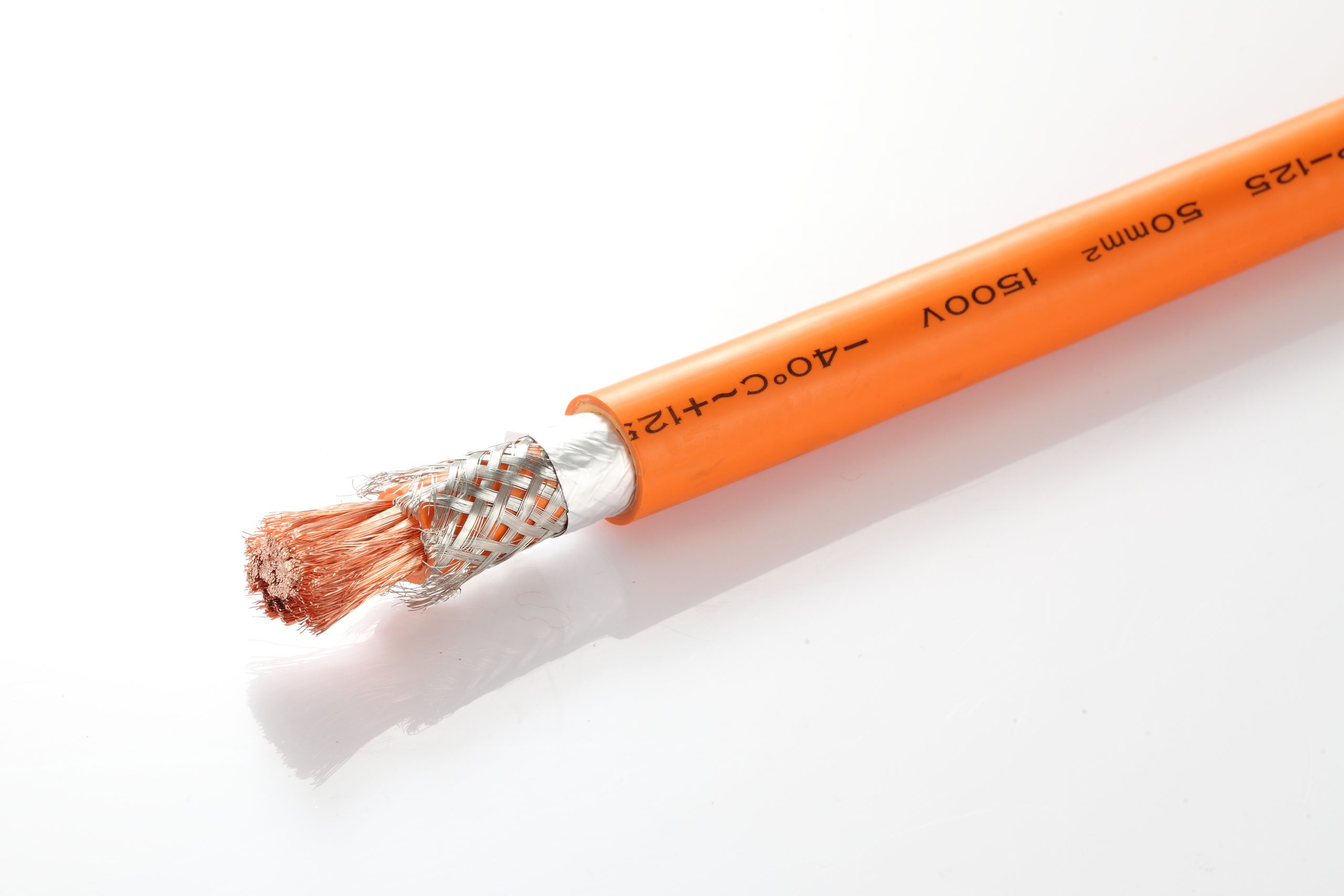

QC/T1037 High Voltage Cable
Application Scenarios
Advantages
• Full range of cables meets VW-1 flame retardant rating
• Performance retention ≥80% before and after ageing
• Utilises low-smoke, halogen-free compounds
• Resistant to high/low temperatures, oils, acids/alkalis, water, abrasion and cracking
• Excellent flame retardancy and conductivity with low conductor temperature rise
• All materials comply with RoHS 2.0 environmental standards
• Customisable high-voltage cable solutions tailored to client requirements based on reference standards
Standard
QC/T 1037-2016
Certification
/
General Specification
Contact OMG Cable Specialists for the latest cable specifications
Cable Characteristics
|
Rated temperature |
-40℃～+(125℃，150℃) |
|
Rated Voltage |
AC 600V/DC 900V；AC 1000V/DC 1500V |
|
Short-term Aging |
150℃*240h；175℃*240h，Comply with QC/T 1037 |
|
Long-term Aging |
125℃*3000h；150℃*3000h，Comply with QC/T 1037 |
|
Flame Test |
Comply With QC/T 1037 |
|
Min bending Radius |
4*OD@OD﹤15mm ；6*OD@OD≧15mm |
|
Dielectric Voltage |
1kV/30min，boost to 5kV/5min |
|
Oil Resistance |
Comply With QC/T 1037 |
|
Anti-tear Performance |
>20N/mm |
|
Environmental Requirements |
Compliant with RoHS & REACH |
Specifications
|
AC600V/DC900V single-core shielded (SD-14406 series) |
||||||||
|
Customer drawing number |
Conductor |
Insulation |
Sheath |
Remark |
||||
|
Size(mm²) |
Outer diameter OD mm |
Maximum resistance Ω/km |
Nominal thickness / minimum thickness (mm) |
Outer diameter OD mm |
Nominal thickness / minimum thickness (mm) |
Outer diameter (mm) OD |
Rated current carrying capacity(A) |
|
|
SD-14406-01 |
1.5 |
1.60Ref. |
12.7 |
0.30/0.24 |
2.20±0.10 |
0.60/0.38 |
4.00±0.20 |
20 |
|
SD-14406-02 |
2.5 |
2.00Ref. |
7.6 |
0.35/0.28 |
2.70±0.15 |
0.60/0.38 |
4.50±0.20 |
30 |
|
SD-14406-03 |
4 |
2.60Ref. |
4.71 |
0.40/0.32 |
3.40±0.15 |
0.60/0.38 |
5.20±0.30 |
40 |
|
SD-14406-04 |
6 |
3.20-3.40Ref. |
3.14 |
0.40/0.32 |
4.00-4.20±0.15 |
0.80/0.54 |
6.20-6.40±0.30 |
52 |
|
SD-14406-05 |
10 |
4.20-4.40Ref. |
1.82 |
0.60/0.48 |
5.40-5.60±0.30 |
1.00/0.70 |
8.00-8.20±0.30 |
75 |
|
SD-14406-06 |
16 |
5.30-5.50Ref. |
1.16 |
0.65/0.52 |
6.60-6.80±0.30 |
1.00/0.70 |
9.20-9.40±0.40 |
100 |
|
SD-14406-07 |
25 |
6.60-6.90Ref. |
0.743 |
0.65/0.52 |
7.90-8.20±0.30 |
1.25/0.80 |
11.00-11.30±0.40 |
125 |
|
SD-14406-08 |
35 |
7.90-8.30Ref. |
0.527 |
0.80/0.64 |
9.50-9.90±0.30 |
1.50/1.00 |
13.10-13.50±0.40 |
165 |
|
SD-14406-09 |
50 |
9.40-9.90Ref. |
0.368 |
0.90/0.71 |
11.20-11.70±0.30 |
1.50/1.00 |
14.80-15.30±0.50 |
215 |
|
SD-14406-10 |
70 |
11.10-11.80Ref. |
0.259 |
1.00/0.80 |
13.10-13.80±0.30 |
1.70/1.16 |
17.10-17.80±0.50 |
260 |
|
SD-14406-11 |
95 |
13.00-13.70Ref. |
0.196 |
1.13/0.90 |
15.30-16.00±0.30 |
1.70/1.16 |
19.30-20.00±0.60 |
320 |
|
AC1000V/DC1500V single-core shielded (SD-14409 series) |
||||||||
|
Customer drawing number |
Conductor |
Insulation |
Sheath |
Remark |
||||
|
Size（mm²） |
Outer diameter OD mm |
Maximum resistance Ω/km |
Nominal thickness / minimum thickness (mm) |
Outer diameter 0D mm |
Nominal thickness / minimum thickness (mm) |
Outer diameter (mm) OD |
Rated current carrying capacity(A) |
|
|
SD-14409-01 |
10 |
4.20-4.40Ref. |
1.82 |
1.00/0.80 |
6.20-6.40±0.30 |
1.30/0.80 |
9.40-9.60±0.30 |
75 |
|
SD-14409-02 |
16 |
5.30-5.50Ref. |
1.16 |
1.00/0.80 |
7.30-7.50±0.30 |
1.30/0.80 |
10.50-10.70±0.30 |
100 |
|
SD-14409-03 |
25 |
6.60-6.90Ref. |
0.743 |
1.30/1.04 |
9.20-9.50±0.30 |
1.50/1.00 |
12.80-13.10±0.40 |
125 |
|
SD-14409-04 |
35 |
7.90-8.30Ref. |
0.527 |
1.30/1.04 |
10.50-10.90±0.40 |
1.50/1.00 |
14.10-14.50±0.40 |
165 |
|
SD-14409-05 |
50 |
9.40-9.90Ref. |
0.368 |
1.50/1.20 |
12.40-12.90±0.40 |
1.70/1.35 |
16.40-16.90±0.50 |
215 |
|
SD-14409-06 |
70 |
11.10-11.80Ref. |
0.259 |
1.50/1.20 |
14.10-14.80±0.50 |
1.70/1.35 |
18.10-18.80±0.50 |
260 |
|
SD-14409-07 |
95 |
13.00-13.70Ref. |
0.196 |
1.50/1.20 |
16.00-16.70±0.50 |
1.70/1.35 |
20.00-20.70±0.60 |
320 |
|
SD-14409-08 |
120 |
14.60-15.40Ref. |
0.153 |
1.50/1.20 |
17.60-18.40±0.50 |
1.70/1.35 |
21.60-22.40±0.60 |
370 |
|
AC600V/DC900V multi-core shielded (SD-11407 series) |
||||||||
|
Customer drawing number |
Conductor |
Insulation |
Sheath |
|||||
|
Core |
Size（mm²） |
Outer diameter OD mm |
Maximum resistance Ω/km |
Nominal thickness / minimum thickness (mm) |
Outer diameter 0D mm |
Nominal thickness / minimum thickness (mm) |
Outer diameter (mm) OD |
|
|
SD-11407-01 |
2 |
1.5 |
1.60Ref. |
12.7 |
0.30/0.24 |
2.20±0.10 |
1.20/0.92 |
7.40±0.30 |
|
SD-11407-02 |
3 |
7.70±0.30 |
||||||
|
SD-11407-03 |
4 |
8.30±0.30 |
||||||
|
SD-11407-04 |
5 |
8.90±0.30 |
||||||
|
SD-11407-05 |
2 |
2.5 |
2.00Ref. |
7.6 |
0.35/0.28 |
2.70±0.15 |
1.20/0.92 |
8.40±0.30 |
|
SD-11407-06 |
3 |
8.80±0.30 |
||||||
|
SD-11407-07 |
4 |
9.50±0.30 |
||||||
|
SD-11407-08 |
5 |
10.30±0.30 |
||||||
|
SD-11407-09 |
2 |
4 |
2.60Ref. |
4.71 |
0.40/0.32 |
3.40±0.15 |
1.20/0.92 |
9.80±0.30 |
|
SD-11407-10 |
3 |
10.30±0.30 |
||||||
|
SD-11407-11 |
4 |
1.40/1.09 |
11.60±0.30 |
|||||
|
SD-11407-12 |
5 |
1.50/1.18 |
12.80±0.40 |
|||||
|
SD-11407-13 |
2 |
6 |
3.20-3.40Ref. |
3.14 |
0.40/0.32 |
4.00-4.20±0.15 |
1.40/1.09 |
11.40-11.80±0.30 |
|
SD-11407-14 |
3 |
1.50/1.18 |
12.20-12.70±0.40 |
|||||
|
SD-11407-15 |
4 |
13.30-13.70±0.40 |
||||||
|
SD-11407-16 |
5 |
14.40-15.00±0.40 |
||||||
