UL2263

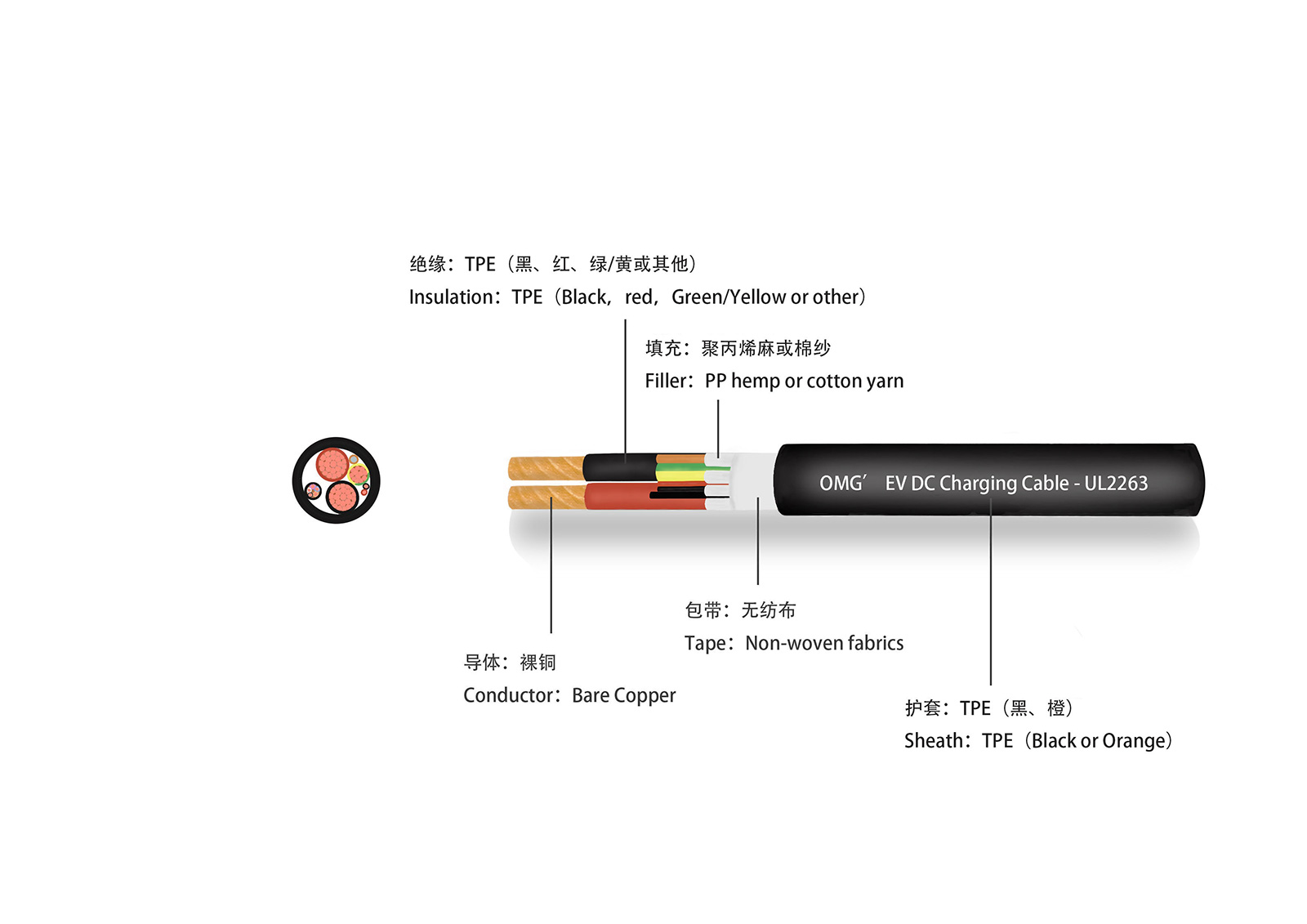

Application Scenarios
Advantages
• Comprehensive product range catering to diverse application scenarios
• Resistant to extreme temperatures, oils, acids, alkalis, water, abrasion and cracking
• Among the earliest manufacturers to obtain UL certification for the entire EVE and EVJE series
• Authoritative dual certification ensuring barrier-free market access in the US and Canada
• UL conducts quarterly/annual sampling inspections at production facilities to guarantee consistent cable quality
Standard
UL2263
Certification
UL & cus certification
Certificate numbers: E345899-2011-06-24
General Specification
Contact OMG Cable Specialists for the latest cable specifications
Cable Characteristics
|
Performance Request |
||
|
Item |
Request |
Test Method |
|
Rated Voltage_ |
1000V |
— |
|
Rated Temperature |
-40~105℃ |
— |
|
Conductor Resistance(at 20℃) |
6AWG≤1.4Ω/km；8AWG≤2.23Ω/km；22AWG≤56.8Ω/km； |
UL2556 |
|
15℃Insulation resistance |
6AWG≥29GΩ.m；8AWG≥34GΩ.m；22AWG≥67GΩ.m |
UL2556 |
|
Dielectric |
4.0KV AC/1min(6AWG&8AWG)，2.0KV AC/1min(22AWG) |
UL2556 |
|
Bending Radius Min. |
≥6 OD. |
— |
|
Flame Test |
FT1 |
UL2556 |
|
Insulation tensile strength |
Before Aging 5.5Mpa； After Aging(136℃/168H) ≥75% Original |
UL2556 |
|
Insulation Elongation |
Before Aging 200%； After Aging(136℃/168H) ≥75% Original |
UL2556 |
|
Jacket tensile strength |
Before Aging 8.3Mpa； After Aging(136℃/168H) ≥75% Original |
UL2556 |
|
Jacket Elongation |
Before Aging 200%； After Aging(136℃/168H) ≥75% Original |
UL2556 |
|
Cold Bending Test |
-40℃/4H， NO Cracking |
UL2556 |
|
Hot Shock Test |
150℃/1H, NO Cracking |
UL2556 |
Specifications
|
Standard UL2263 |
Specifications |
Reference Current |
Finished external diameter |
Packaging |
|
EVE
|
2x5AWG+7AWG+18AWG |
80A |
Structure designed to meet standards and customer requirements
|
As per the order or as agreed
|
|
2x4AWG+6AWG+18AWG |
90A |
|||
|
2x3AWG+5AWG+18AWG |
100A |
|||
|
2x2AWG+4AWG+18AWG |
120A |
|||
|
2x1AWG+6AWG+18AWG |
150A |
|||
|
2×1/0AWG+6AWG+18AWG |
170A |
|||
|
2×2/0AWG+6AWG+18AWG |
200A |
|||
|
4x1AWG+6AWG+18AWG |
300A |
|||
|
4×1/0AWG+6AWG+18AWG |
350A |
|||
|
Signal wire specifications: 16 AWG to 22 AWG, typically 0 to 12 strands. |
||||
