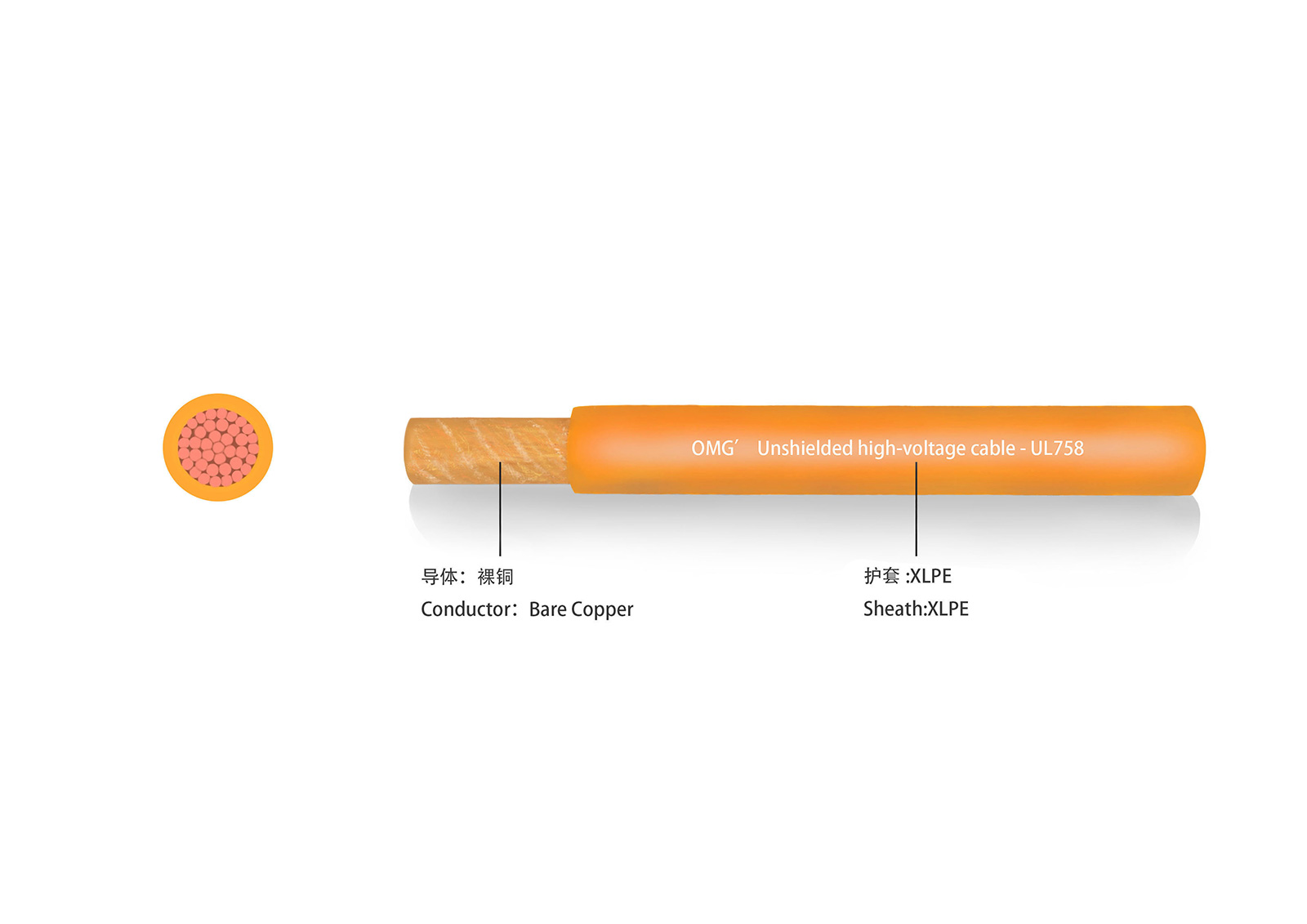

UL758 high voltage cable
Application Scenarios
Advantages
• Full range of cables meets VW-1 flame retardant rating
• Performance retention ≥80% before and after ageing
• Resistant to high/low temperatures, oils, acids/alkalis, water, abrasion and cracking
• Comprehensive certification including UL and CE approvals
• UL conducts quarterly/annual sampling inspections at production facilities to ensure consistent cable quality
Standard
UL758, UL3820 (single-core unshielded 1000V)
UL3886 (single-core unshielded 1500V)
UL30088 (single-core shielded 1000V)
Certification
UL certification
Certificate number: E323711
General Specification
Contact OMG Cable Specialists for the latest cable specifications
Cable Characteristics
|
Rated Temperature |
-40℃-+125℃ |
|
Rated Voltage |
Optional 1000V AC or 1500V AC |
|
Aging |
158℃*168h，comply with UL 758 |
|
Dielectric Voltage |
3000V AC*1min；4000V AC*1min |
|
Deformation Test |
121℃*4h，comply with UL 758 |
|
Flame Test |
VW-1，comply with UL 758 |
|
Cold Bend Test |
-40℃*4h，comply with UL 758 |
|
Environmental Requirements |
Compliant with RoHS & REACH |
|
Anti-tear Performance |
>20N/mm |
|
Min Bending Radius |
4*OD |
Specifications
|
AC 1000V single-core shielded (SD-14902 series) |
||||||||
|
Customer drawing number |
Conductor |
Insulation |
Sheath |
Remark |
||||
|
Size AWG |
Outer diameter OD mm |
Maximum resistance Ω/km |
Nominal thickness / minimum thickness (mm) |
Outer diameter OD mm |
Nominal thickness / minimum thickness (mm) |
Outer diameter mm OD |
Rated current A |
|
|
SD-14902-01 |
16 |
1.50Ref. |
14.6 |
0.76/0.69 |
3.02±0.20 |
0.76/0.61 |
5.10±0.25 |
15 |
|
SD-14902-02 |
15 |
1.70Ref. |
11.3 |
0.76/0.69 |
3.22±0.20 |
0.76/0.61 |
5.35±0.25 |
20 |
|
SD-14902-03 |
14 |
1.90Ref. |
8.78 |
0.76/0.69 |
3.42±0.20 |
0.76/0.61 |
5.55±0.25 |
24 |
|
SD-14902-04 |
13 |
2.10Ref. |
7.1 |
0.76/0.69 |
3.62±0.20 |
0.76/0.61 |
5.75±0.25 |
28 |
|
SD-14902-05 |
12 |
2.45-2.60Ref. |
5.64 |
0.76/0.69 |
4.00-4.12±0.20 |
0.76/0.61 |
6.10-6.25±0.25 |
34 |
|
SD-14902-06 |
11 |
2.70-2.90Ref. |
4.48 |
0.76/0.69 |
4.22-4.42±0.20 |
0.76/0.61 |
6.35-6.55±0.25 |
39 |
|
SD-14902-07 |
10 |
3.00-3.20Ref. |
3.564 |
0.76/0.69 |
4.52-4.72±0.25 |
0.76/0.61 |
6.65-6.85±0.25 |
45 |
|
SD-14902-08 |
9 |
3.40-3.60Ref. |
2.813 |
0.76/0.69 |
4.92-5.12±0.25 |
0.76/0.61 |
7.10-7.30±0.30 |
53 |
|
SD-14902-09 |
8 |
3.90-4.10Ref. |
2.23 |
1.15/1.02 |
6.20-6.40±0.25 |
0.76/0.61 |
8.30-8.50±0.30 |
64 |
|
SD-14902-10 |
7 |
4.30-4.60Ref. |
1.768 |
1.15/1.02 |
6.60-6.90±0.30 |
0.76/0.61 |
8.70-9.00±0.30 |
75 |
|
SD-14902-11 |
6 |
4.90-5.10Ref. |
1.403 |
1.15/1.02 |
7.20-7.40±0.30 |
0.76/0.61 |
9.30-9.50±0.30 |
85 |
|
SD-14902-12 |
5 |
5.40-5.70Ref. |
1.113 |
1.15/1.02 |
7.70-7.90±0.30 |
1.17/1.06 |
10.60-10.80±0.50 |
100 |
|
SD-14902-13 |
4 |
6.00-6.30Ref. |
0.882 |
1.15/1.02 |
8.30-8.60±0.30 |
1.17/1.06 |
11.30-11.60±0.50 |
115 |
|
SD-14902-14 |
3 |
6.70-7.10Ref. |
0.6996 |
1.15/1.02 |
9.00-9.40±0.30 |
1.17/1.06 |
12.00-12.40±0.50 |
135 |
|
SD-14902-15 |
2 |
7.60-8.10Ref. |
0.5448 |
1.15/1.02 |
9.90-10.40±0.30 |
1.17/1.06 |
12.90-13.40±0.50 |
160 |
|
SD-14902-16 |
1 |
8.60-9.10Ref. |
0.4398 |
1.40/1.27 |
11.40-11.90±0.30 |
1.40/1.27 |
14.80-15.30±0.60 |
175 |
|
AC 1500V single-core unshielded (SD-14905 series) |
||||||
|
Customer drawing number |
Conductor |
Insulation |
Remark |
|||
|
Size AWG |
Outer diameter OD mm |
Maximum resistance Ω/km |
Nominal thickness / minimum thickness (mm) |
Outer diameter OD mm |
Rated current A |
|
|
SD-14905-01 |
16 |
1.50Ref. |
14.6 |
0.76/0.69 |
3.02±0.20 |
15 |
|
SD-14905-02 |
15 |
1.70Ref. |
11.3 |
0.76/0.69 |
3.22±0.20 |
20 |
|
SD-14905-03 |
14 |
1.90Ref. |
8.78 |
0.76/0.69 |
3.42±0.20 |
24 |
|
SD-14905-04 |
13 |
2.10Ref. |
7.1 |
0.76/0.69 |
3.62±0.20 |
28 |
|
SD-14905-05 |
12 |
2.45-2.60Ref. |
5.64 |
0.76/0.69 |
4.00-4.12±0.20 |
34 |
|
SD-14905-06 |
11 |
2.70-2.90Ref. |
4.48 |
0.76/0.69 |
4.22-4.42±0.20 |
39 |
|
SD-14905-07 |
10 |
3.00-3.20Ref. |
3.564 |
0.76/0.69 |
4.52-4.72±0.25 |
45 |
|
SD-14905-08 |
9 |
3.40-3.60Ref. |
2.813 |
0.76/0.69 |
4.92-5.12±0.25 |
53 |
|
SD-14905-09 |
8 |
3.90-4.10Ref. |
2.23 |
1.15/1.02 |
6.20-6.40±0.25 |
64 |
|
SD-14905-10 |
7 |
4.30-4.60Ref. |
1.768 |
1.15/1.02 |
6.60-6.90±0.30 |
75 |
|
SD-14905-11 |
6 |
4.90-5.10Ref. |
1.403 |
1.15/1.02 |
7.20-7.40±0.30 |
85 |
|
SD-14905-12 |
5 |
5.40-5.70Ref. |
1.113 |
1.15/1.02 |
7.70-7.90±0.30 |
100 |
|
SD-14905-13 |
4 |
6.00-6.30Ref. |
0.882 |
1.15/1.02 |
8.30-8.60±0.30 |
115 |
|
SD-14905-14 |
3 |
6.70-7.10Ref. |
0.6996 |
1.15/1.02 |
9.00-9.40±0.30 |
135 |
|
SD-14905-15 |
2 |
7.60-8.10Ref. |
0.5448 |
1.15/1.02 |
9.90-10.40±0.30 |
160 |
|
SD-14905-16 |
1 |
8.60-9.10Ref. |
0.4398 |
1.40/1.27 |
11.40-11.90±0.30 |
175 |
