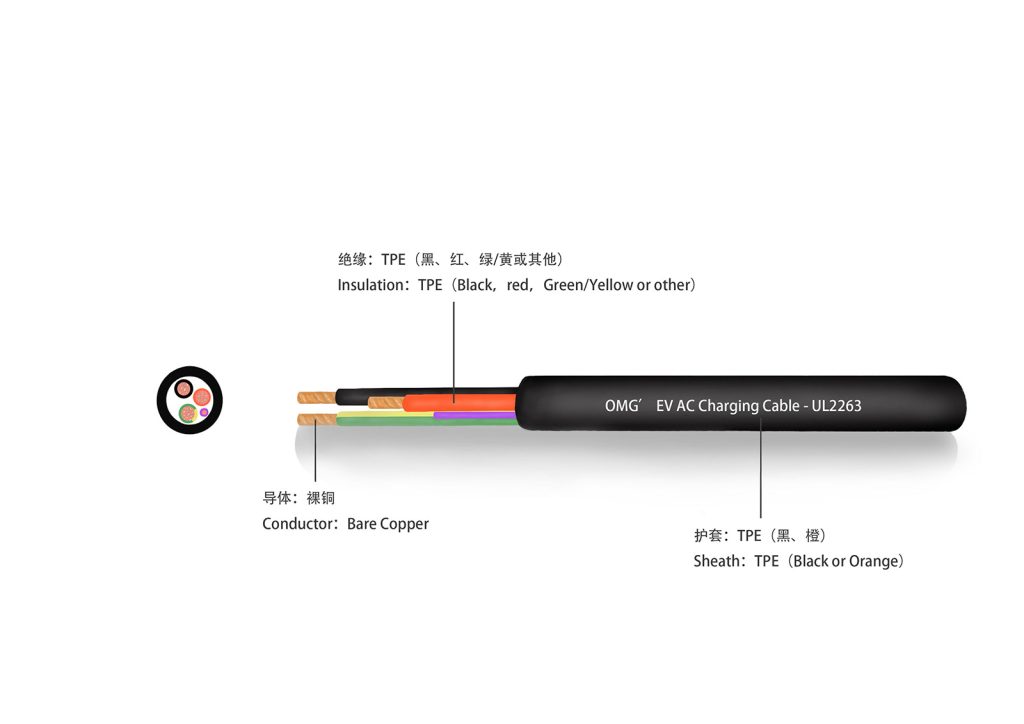

UL-certified electric vehicle cables | AC charging station cables
Both cables are UL 2263 certified and compatible with 120V/240V systems. They feature oxygen-free copper conductors and weather-resistant jackets, offering high-temperature resistance, anti-aging, and anti-corrosion properties. Clear data for easy selection.
I. Key Specifications Comparison
|
Feature |
||
|
Conductor Size |
12 AWG (thicker) |
14 AWG |
|
Rated Current |
24 A |
16 A |
|
Rated Voltage |
240 V |
120V / 240V |
|
Max Power |
5.76 kW |
3.84 kW |
|
Max Cable Length |
≤50 ft (≈15 m) |
≤30 ft (≈9 m) |
|
Voltage System |
240V |
120V / 240V |
|
UL Standard |
UL 2263 |
UL 2263 |
|
Conductor Material |
Oxygen-free copper |
Oxygen-free copper |
|
Jacket Properties |
Weather-resistant, high-temp resistant, anti-aging, anti-corrosion |
Weather-resistant, high-temp resistant, anti-aging, anti-corrosion |
II. Advantages & Application Scenarios
|
Aspect |
12AWG (24A) – High Performance |
14AWG (16A) – Lightweight & Portable |
|
Key Benefits |
Lower resistance, minimal voltage drop, efficient over longer distances |
Lightweight design, high portability, cost-effective |
|
Recommended Use |
High-power fast charging, medium/large EVs, outdoor charging equipment, premium OEM models |
Home charging, economy EVs, short trips & emergency use, daily portable needs |
|
Typical Power Output |
5.76 kW @ 240V |
3.84 kW @ 240V or 1.92 kW @ 120V |
|
Selection Priority |
Fast charging + longer cable run |
Home use + portability + budget control |
III. Selection Guide (One-Sentence Summary)
✅ For fast charging & longer distances → Choose UL 3×12AWG (24A)
✅ For home use, portability & cost control → Choose UL 3×14AWG (16A)
IV. Value & Compliance
UL Certification – Meets North American access standards, enhances credibility, supports aftermarket expansion
Sustainable & Green – Eco-friendly materials + precision manufacturing, align with green energy trends
Wide Applicability – Suitable for portable charging, home charging, outdoor temporary charging, and more
